NI SCXI-1100電壓輸入模塊
1.產 品 資 料 介 紹：
中文資料：
NI SCXI-1100電壓輸入模塊是National Instruments（NI）推出的一款模塊化測量系統模塊，專門用于電壓輸入信號的采集。以下是關于該模塊的詳細介紹：
- 功能與應用：
- 主要功能：將外部電壓信號轉換為數字信號，以便進行數據采集、分析和控制。
- 應用領域：廣泛應用于測試和測量、實驗室研究、自動化控制、傳感器監測等領域。
- 基本特性：
- 電壓輸入：提供多個電壓輸入通道，支持單端和差分測量，可連接不同的電壓源（如傳感器、測試儀器等）進行電壓測量。
- 量程范圍：提供不同的量程范圍選項，用戶可根據需要選擇適合的量程設置，以測量不同幅度的電壓信號。
- 分辨率和采樣率：分辨率和采樣率通常取決于所選的NI數據采集硬件和設置。分辨率決定了模數轉換器（ADC）將連續信號轉換為數字信號時的精度，而采樣率則決定了模塊獲取數據的速率。
- 軟件支持：
- 這種模塊通常與NI的軟件平臺（如LabVIEW）一起使用，通過豐富的工具和庫幫助用戶配置、控制和分析模塊的數據。
英文資料
The NI SCXI-1100 Voltage Input Module is a modular measurement system module launched by National Instruments (NI), specifically designed for collecting voltage input signals. The following is a detailed introduction to this module:
Features and Applications:
Main function: Convert external voltage signals into digital signals for data acquisition, analysis, and control.
Application areas: Widely used in testing and measurement, laboratory research, automation control, sensor monitoring and other fields.
Basic features:
Voltage input: Provides multiple voltage input channels, supports single ended and differential measurement, and can connect different voltage sources (such as sensors, testing instruments, etc.) for voltage measurement.
Range range: Provides different range options, and users can choose suitable range settings according to their needs to measure voltage signals of different amplitudes.
Resolution and sampling rate: Resolution and sampling rate usually depend on the selected NI data acquisition hardware and settings. The resolution determines the accuracy of the analog-to-digital converter (ADC) in converting continuous signals into digital signals, while the sampling rate determines the rate at which the module obtains data.
Software support:
This type of module is typically used in conjunction with NI's software platforms, such as LabVIEW, to assist users in configuring, controlling, and analyzing module data through rich tools and libraries.

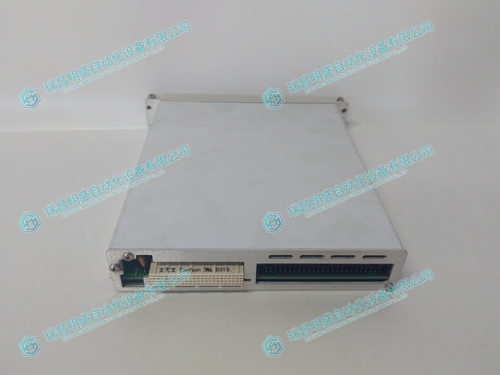

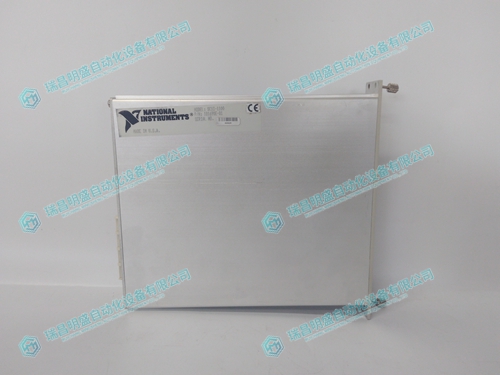

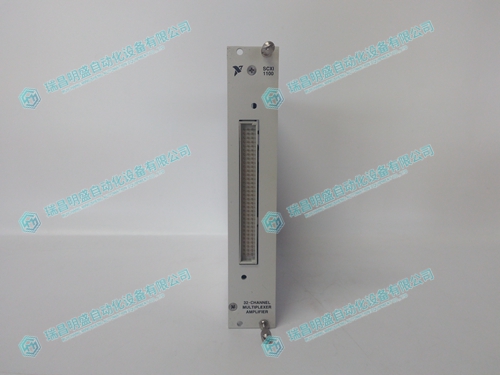

2.產 品 展 示
3.產 品 展 示
HONEYWELL 05704-A-0146 DIGITAL
PROSOFT MVI46-MCM COMMUNICATIO
| PMB33F-20201-03 | DT 370A | R23GENA-R1-NS-VS-01 |
| PMB33F-20101-00 | DT 371A | R43HCNA-NP-RW-VS-03 |
| PMB33F-10216-03 | GJR2 242100 R1 | R45GCNA-TS-NS-NV-00 |
| PMB33F-20201-02 | ABB DSAO120A 3BSE018293R1 | R35KMNC-TS-RC-NV-02 |
| R46GSNA-R2-NS-VS-04 | R32HSNC-TS-NS-NV-02 | R22GENT-TS-NS-NV-02 |
| R65HENA-TS-NS-NV-00 | R43HCBA-R2-NS-VS-00 | R35GENH-R2-NS-NV-00 |
本篇文章出自瑞昌明盛自動化設備有限公司官網，轉載請附上此鏈接:HTTP://www.215pk.com
