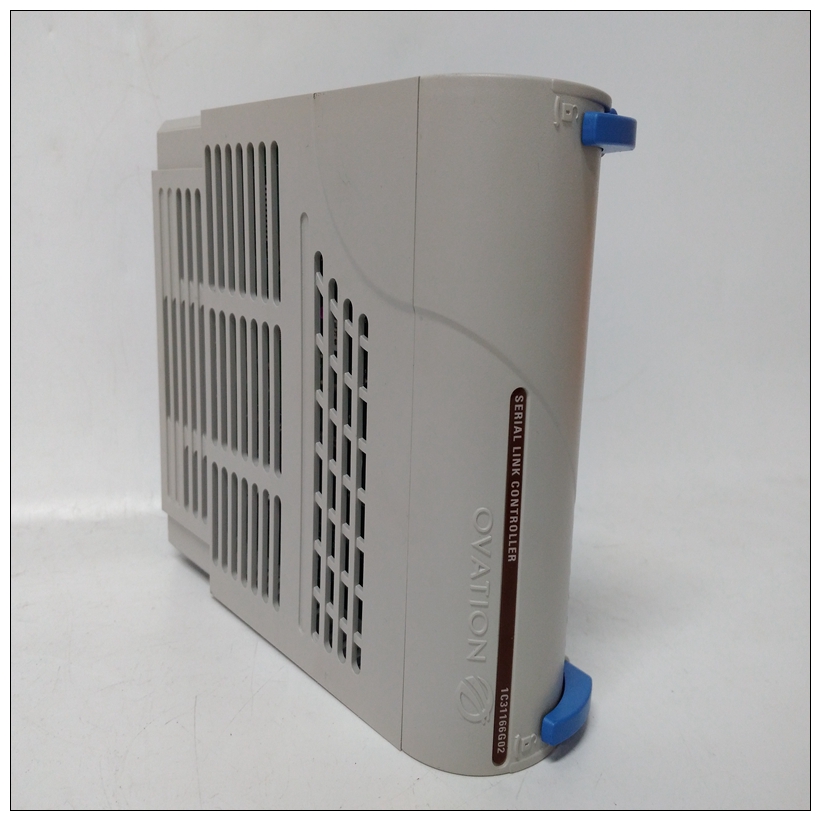

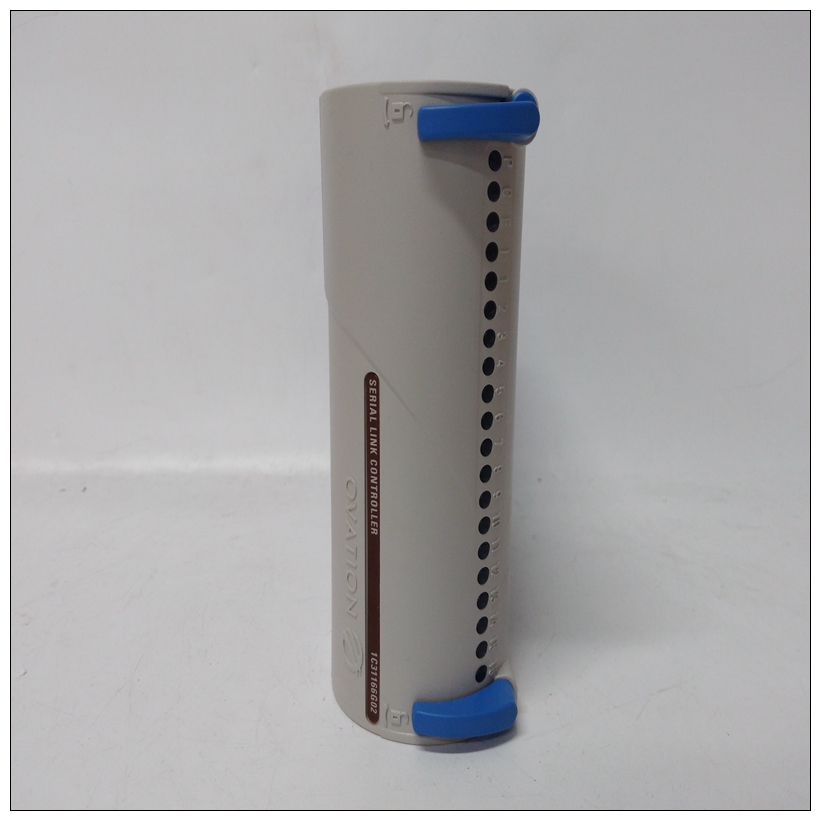

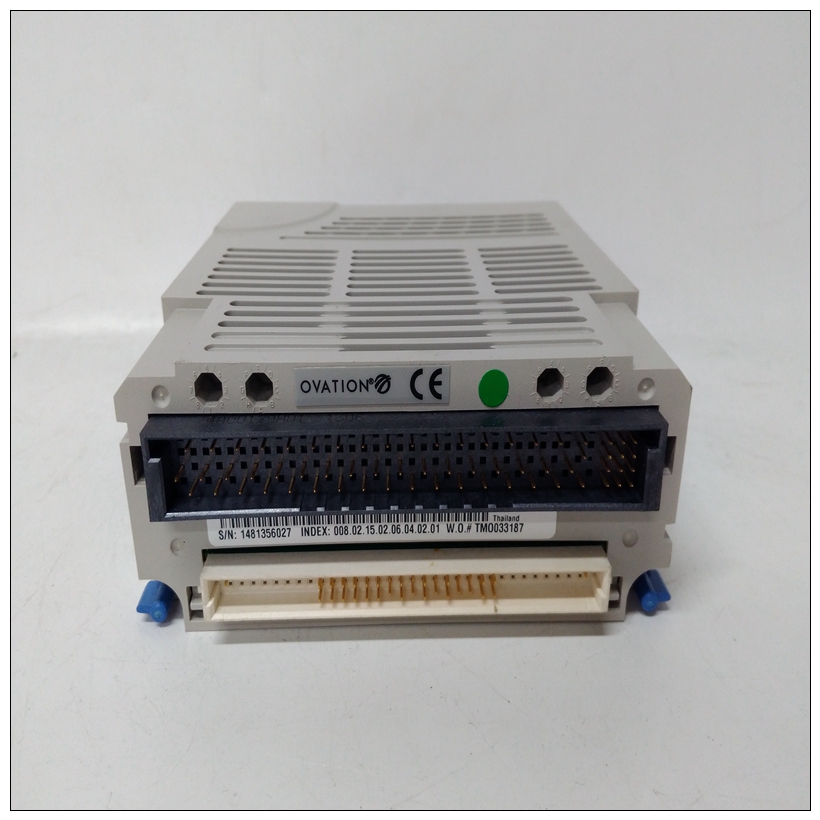

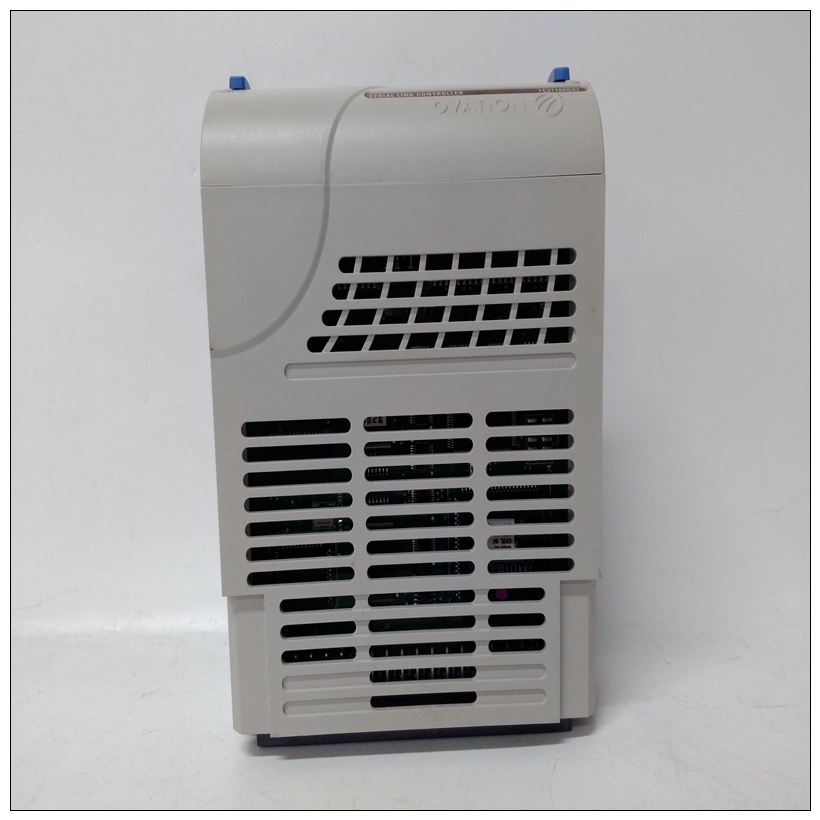

1C31166G02通訊模塊,1C31166G02使用配置說明
選擇主站號。
配置總線參數，設置網絡波特率。從PROFIBUS設備庫中，選擇從設備并將其拖動到網絡視圖中，以將從屬設備添加到配置中。
9、對于每個從機：a、 設置從站編號b、 設置從屬模塊類型c、 為從設備分配I/O地址d、 配置從屬參數筆記
輸入/輸出地址確定從數據映射到CLX的位置數據表。您可以使用“文件”菜單下的“打印預覽”功能確定所有從設備的每個輸入/輸出模塊映射到CLX處理器中的輸入和輸出數據陣列。
1C31166G02通訊模塊使用零調制解調器電纜將PROFIBUS配置工具連接至掃描儀提供，或通過配置RSLinx驅動程序。
當CLX PLC處于程序模式或PBIM塊啟用清除模式時非活動，右鍵單擊CLX Master并從快捷菜單中選擇Connect。筆記
連接到CLX掃描儀之前，請確保已完成
其初始化（掃描儀正面顯示綠色OK LED）
CLX PLC處于程序模式或PBIM塊清除模式啟用處于非活動狀態。
12、當您正在通信時，在掃描儀。
Select the Master Station number.
7.
Configure the bus parameters and set the network baud rate.
8.
From the PROFIBUS Device library, select and drag the slave into the Network view to
add the slave to the configuration.
9.
For each slave:
a. Set the slave station number
b. Set the slave module type
c. Assign I/O addresses to the slave
d. Configure the slave parameters
Note
The I/O addresses determine where the slave data maps into the CLX
data table. You can use the Print Preview feature under the File menu to
determine where each I/O module for all your slaves is mapped to in the
input and output data arrays in the CLX processor.
10. Connect the PROFIBUS Configuration Tool to the scanner using the null modem cable
supplied, or by configuring an RSLinx driver.
11. While the CLX PLC is in Program mode or PBIM Block with Clear mode enabled is
inactive, right-click on CLX Master and select Connect from the shortcut menu.
Note
Before connecting to the CLX scanner, make sure that it has completed
its initialization (green OK LED displays on the front of the scanner)
and the CLX PLC is in Program mode or PBIM Block with Clear mode
enabled is inactive.
12. One you are communicating, the COMM LED flashes at one-second intervals on the
scanner.
