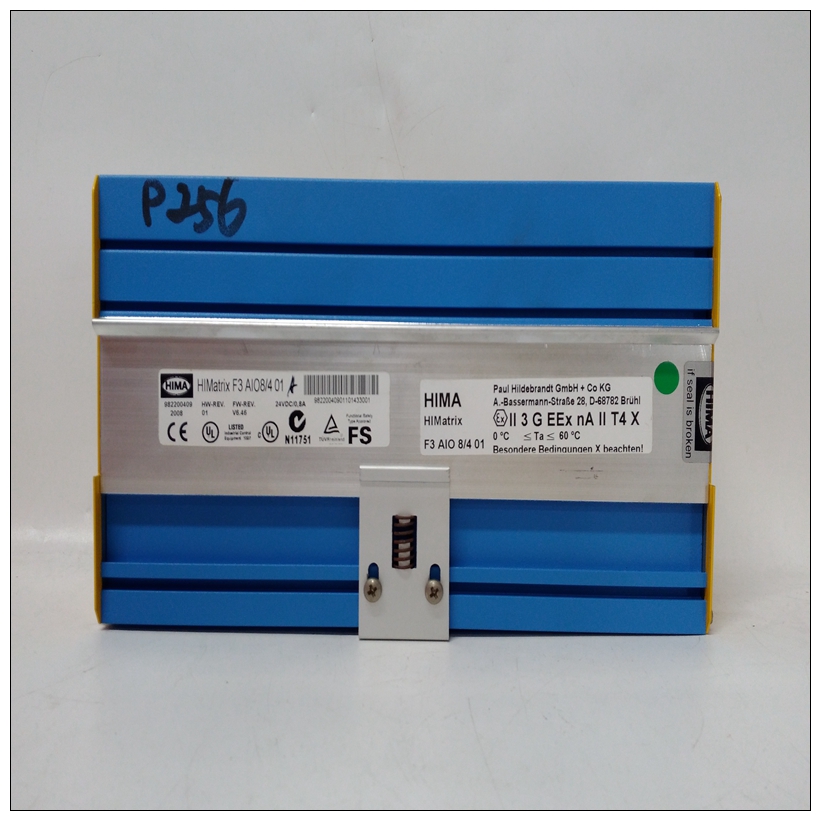

HIMA F3 AIO 8/4 01模塊,F3 AIO 8/4 01使用手冊
ERRNETOUT計數器
寄存器Local：Slot:S.Data[22]的低位字節為0-7，用于統計網絡超時錯誤。這些網絡死機時會發生錯誤。如果發生超時，掃描程序?qū)⑤斎胨髻r令牌狀態ErrHsa計數器當一個站高于聽到設置的高位站地址。如果掃描儀正在聯機，則會增加計數器，并保持脫機狀態。
ErrStn計數器寄存器Local：Slot：S.Data[23]的低位字節為0-7，當復制站檢測。如果掃描儀聯機時發生此錯誤，則掃描儀會增加errStn計數器并保持脫機狀態。
HIMA F3 AIO 8/4 01模塊ErrPasTok計數器當掃描儀無法工作時，寄存器Local：Slot：S.Data[23]的高位字節8-15遞增傳遞令牌。這通常是由接線不良（短路）或其他硬件問題引起的。掃描程序嘗試傳遞令牌，但未能聽到自己的令牌傳遞消息，并將其自身置于脫機。ErrLasBad計數器寄存器Local：Slot：S.Data[24]的低位字節為0-7，在激活站列表時遞增由于多個網絡錯誤，ASPC2 LAN控制器上的無效。此錯誤是由
由于接線或硬件不良。
The ErrNetTout Counter
The low byte of register Local:Slot:S.Data[22], bits 0-7, counts network timeout errors. These
errors occur when the network is dead. If a timeout occurs, the scanner enters the claim token
state.
The ErrHsa Counter
The high byte of register Local:Slot:S.Data[22], bits 8-15, increments when a station higher than
the set high station address is heard. If the scanner is going online, it increments the counter and
stays offline.
The ErrStn Counter
The low byte of register Local:Slot:S.Data[23], bits 0-7, increments when a duplicate station is
detected. If this error occurs when the scanner is going online, the scanner increments the errStn
counter and stays offline.
The ErrPasTok Counter
The high byte of register Local:Slot:S.Data[23], bits 8-15, increments when the scanner is unable
to pass the token. This is usually caused by bad wiring (shorted) or other hardware problems.
The scanner tries to pass the token, fails to hear its own token pass message, and puts itself
offline.
The ErrLasBad Counter
The low byte of register Local:Slot:S.Data [24], bits 0-7, increments when the active station list
on the ASPC2 LAN controller is invalid because of multiple network errors. This error is caused
by bad wiring or hardware.
