輸入/輸出擴展概述
SST-PB3-CLX主機支持最多1984個輸入字節和1968個輸入/輸出數據輸出4個I/O頁內的字節。開頭為控制寄存器保留了4個字節每一頁的。每個輸入頁為500字節，每個輸出頁為496字節。
主機通過寫入來控制將哪個I/O頁映射到ControlLogix I/O表ControlLogix輸出表的字節1。要更改輸入頁，（使用WORD數據類型），更新字節1的下半字節（本地：2:O.Data[0]）。8–11，AOP標記本地：插槽：ModuleControl。將頁碼（0–3）更改為頁碼（0–3）。更改輸出頁面，更新字節1的上半字節（本地：插槽：O.Data[0]）。

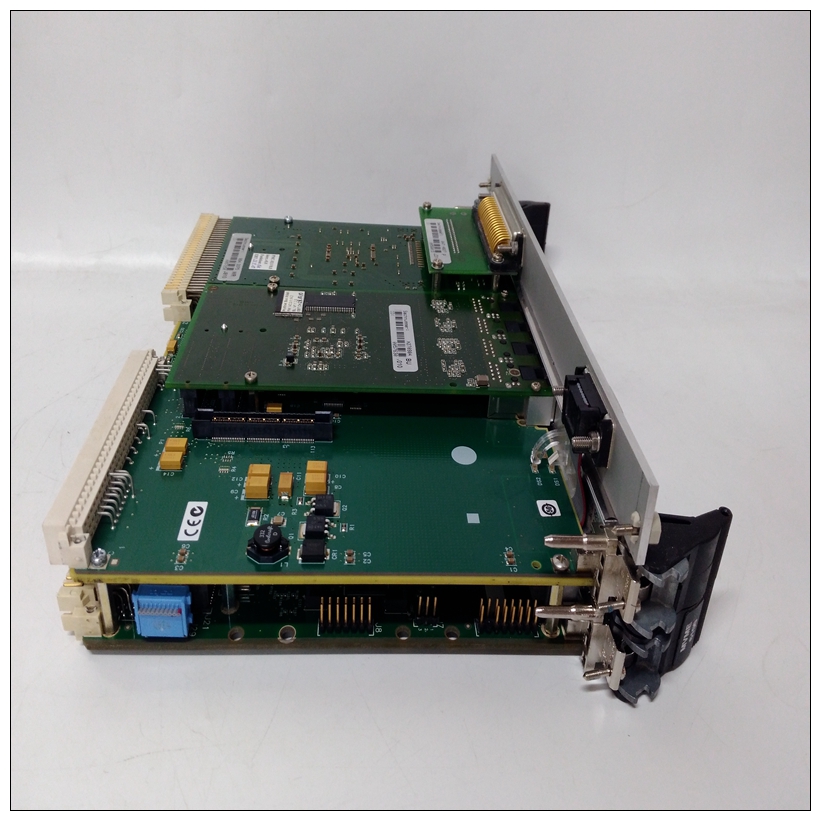

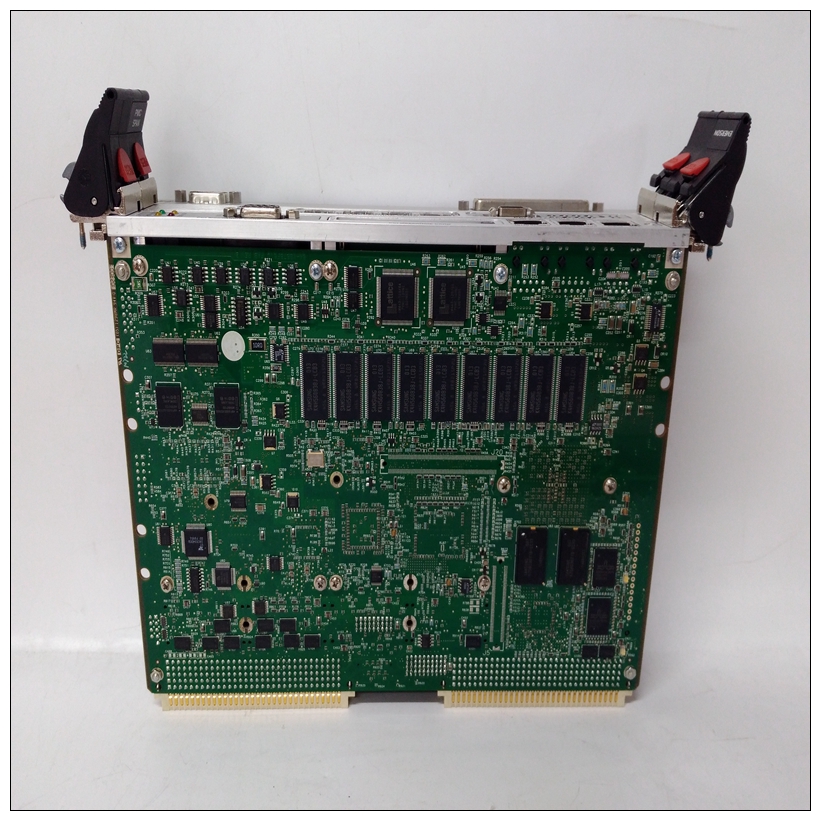

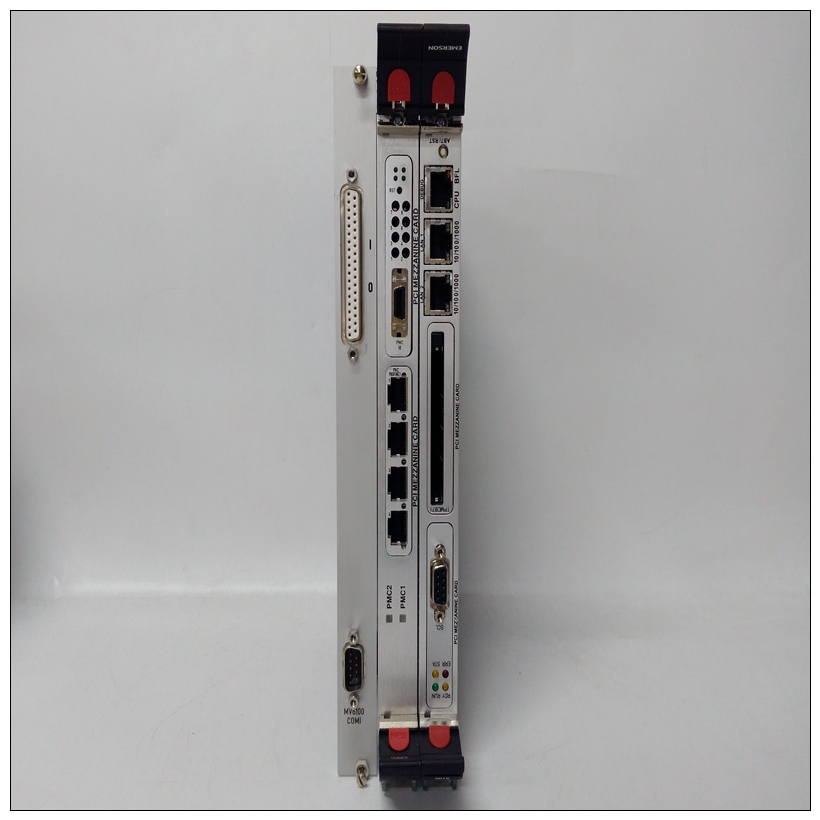

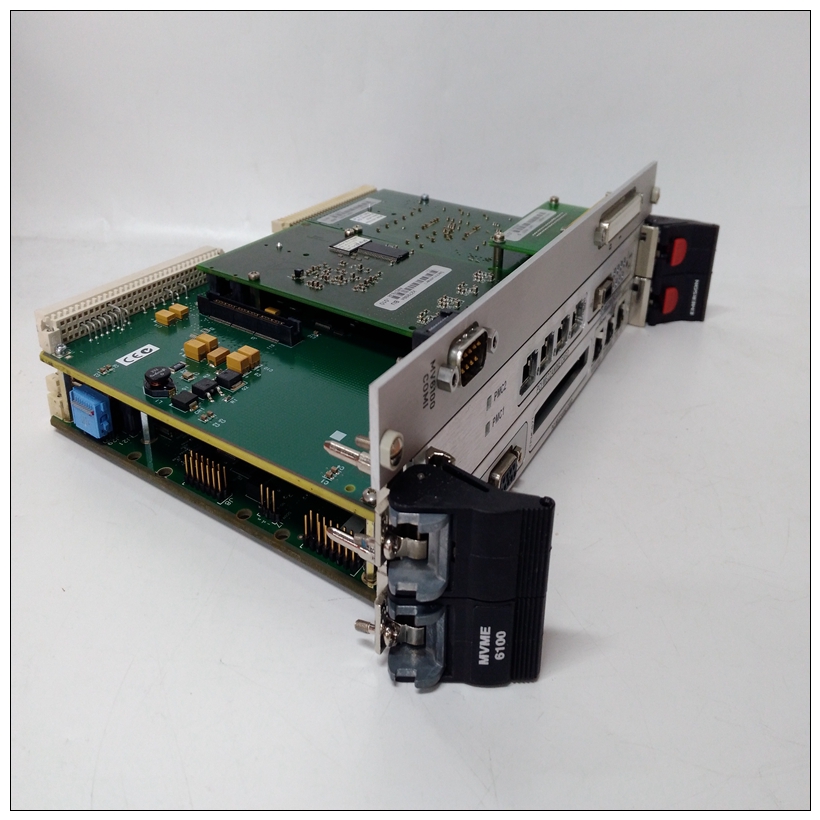

MV6100COMI卡件備件12–15，AOP標記本地：插槽：ModuleControl。將頁碼（0-3）更改為頁碼（4-7）。更改輸出頁時，更新控制寄存器（本地：插槽：I.Data[0]）。12–15，AOP標記本地：插槽：ModuleControl。用輸出頁碼和輸出更改頁碼位4-7同步復制到ControlLogix輸出之前，需要同時提供數據
更改輸入頁面后，主機應等待固件設置頁碼在輸入表的字節1中（本地：插槽：I.Data[0]）。8–11，AOP標記本地：插槽：ModuleControl。當前頁位0-3）。在輸入表字節1的低半字節（本地：插槽：I.Data[0]）。8–11，AOP標記本地：插槽：ModuleControl。CurrentPage位0-3）等于輸出表的低半字節字節1（本地：插槽：O.Data[0]。8–11，AOP標記本地：插槽：ModuleControl.ChangePage位0-3）。要檢索或更新頁面上的數據，請使用RsLogix 5000軟件。使用CPS指令時，I/O更新無法在
您正在復制到本地緩沖區/從本地緩沖區復制。如果計劃將所有使用的輸入頁讀取到本地處理輸入數據之前的緩沖區，下面是避免數據所需的示例邏輯撕裂。
I/O Expansion Overview
The SST-PB3-CLX master supports I/O data up to a maximum of 1984 input bytes and 1968
output bytes within 4 I/O pages. There are 4 bytes reserved for control registers at the beginning
of each page. Each input page is 500 bytes and each output page is 496 bytes.
The Host controls which page of I/O is mapped into the ControlLogix I/O table by writing to
Byte 1 of the ControlLogix output table. To change the input page, (WORD Data type is used),
update the lower nibble of byte 1 (Local:2:O.Data[0].8 – 11, AOP Tag
Local:Slot:ModuleControl.ChangePage Bits 0 - 3) with page number (0 – 3). To change the
output page, update the upper nibble of byte 1 (Local:Slot:O.Data[0].12 – 15, AOP Tag
Local:Slot:ModuleControl.ChangePage Bits 4 - 7) with page number (0 -3).
When changing Output Pages, updating the Control register (Local:Slot:I.Data[0].12 – 15, AOP
tag Local:Slot:ModuleControl.ChangePage Bits 4 - 7) with the output page number and output
data at the same time is required before doing a Synchronous Copy to the ControlLogix Output
table.
After changing the Input pages, the host should wait for the firmware to set the page number(s)
in byte 1 of the Input table (Local:Slot:I.Data[0].8 – 11, AOP tag
Local:Slot:ModuleControl.CurrentPage Bits 0 - 3). Input pages should not be read until the
Inpute table’s low nibble of byte 1 (Local:Slot:I.Data[0].8 – 11, AOP tag
Local:Slot:ModuleControl.CurrentPage Bits 0 - 3) is equal to the Output table’s low nibble of
byte 1 (Local:Slot:O.Data[0].8 – 11, AOP tag Local:Slot:ModuleControl.ChangePage Bits 0 - 3).
To retrieve or update the data on a page, use the CPS instruction (Synchronous Copy File) in the
RsLogix 5000 software. With the CPS instruction, an I/O update cannot change the data while
you are copying to/from the local buffer. If you plan to read all used input pages into a local
buffer prior to processing input data, below is sample logic that would be required to avoid data
tearing.
