Bently 3500/92 136188-02以太網輸入輸出模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Bently 3500/92 136188-02 以太網輸入輸出模塊（Ethernet I/O Module）是 Bently Nevada 公司為其 3500 監控與保護系統 設計的一款用于現場數據采集和遠程數據交換的模塊。該模塊通過以太網接口提供高效的數字和模擬信號數據傳輸，通常用于工業自動化、設備監控、機械保護等領域，能夠與其他監控系統和設備（如傳感器、PLC、SCADA 系統等）進行實時數據交互。
主要特點
高效的遠程數據傳輸：
- 3500/92 以太網 I/O 模塊支持通過以太網（Ethernet）連接與監控系統進行高效的數據傳輸。
- 可用于遠程控制和監控，特別適合需要在大型設施或分布式系統中進行數據采集的應用。
靈活的輸入輸出配置：
- 該模塊支持多種輸入輸出類型，包括數字量和模擬量信號。
- 可進行靈活配置，以適應不同的應用場景，如機器保護、預警和故障分析。
實時監控與報警功能：
- 支持通過網絡實時傳輸設備狀態數據，能夠?qū)崟r(shí)監控設備健康狀況，及時發現故障并發出報警。
- 提供高精度數據和可靠的診斷功能，有助于減少設備故障和提高生產效率。
增強的系統集成能力：
- 3500/92 模塊能夠與 Bently Nevada 的 3500 系列監控系統（如 3500/20、3500/40 模塊）進行無縫集成，實現全面的設備監控和數據分析。
- 支持多種工業標準協議，如 Modbus、Ethernet/IP、OPC 等，確保與第三方設備的兼容性。
模塊化設計：
- 采用模塊化設計，支持與現有的 Bently Nevada 系統集成，用戶可以根據需要進行擴展，便于現場的靈活部署。
- 易于維護和升級，通過插拔模塊進行擴展和替換。
高可靠性與耐用性：
- 模塊設計符合工業環境標準，具備抗干擾能力和寬工作溫度范圍，適應各種惡劣環境。
- 具有冗余設計和故障自診斷功能，保證系統的可靠性和持續運行。
技術規格
- 型號：Bently 3500/92, 訂貨號：136188-02
- 電源輸入：典型電源電壓為 24V DC。
- 接口類型：以太網接口（支持 TCP/IP 協議）用于與其他設備的通信。
- 輸入輸出類型：數字輸入、數字輸出、模擬輸入、模擬輸出等多種信號類型。
- 通信協議：支持 Modbus、Ethernet/IP、OPC 等標準協議。
- 網絡接口：支持標準以太網連接，適配常見的工業以太網協議。
- 環境適應性：工作溫度范圍通常為 -40°C 到 85°C，適合工業現場環境。
應用領域
機器保護與設備監控：
- 該模塊主要用于提供機器和設備的實時監控，如泵、壓縮機、發電機等，能夠?qū)崟r(shí)捕捉異常并觸發報警。
- 幫助設備維護人員實現預防性維護，減少突發故障，提升設備可用性和生產效率。
石油天然氣行業：
- 在石油鉆井平臺、天然氣處理廠等場景中，3500/92 模塊可以用于監控設備的運行狀態，確保操作安全和穩定。
發電廠和能源行業：
- 在電力生產過程中，3500/92 模塊可以實時監控發電機組、變壓器等設備的健康狀況，幫助運維人員進行早期故障預測和處理。
制造業與自動化系統：
- 可用于制造生產線、自動化裝配和機器人系統中，實現設備的遠程監控和狀態檢查，幫助優化生產流程。
基礎設施監控：
- 在大型建筑或基礎設施項目中，3500/92 模塊用于實時監控系統中的關鍵設備（如 HVAC 系統、電力供應系統等）的運行狀態。
英文資料：
Bently 3500/92 136188-02 Ethernet I/O Module is a module designed by Bently Nevada Corporation for its 3500 monitoring and protection system, used for on-site data acquisition and remote data exchange. This module provides efficient digital and analog signal data transmission through Ethernet interfaces and is commonly used in industrial automation, equipment monitoring, mechanical protection, and other fields. It can interact with other monitoring systems and devices (such as sensors, PLCs, SCADA systems, etc.) in real-time for data exchange.
main features
Efficient remote data transmission:
The 3500/92 Ethernet I/O module supports efficient data transmission with monitoring systems through Ethernet connections.
Can be used for remote control and monitoring, especially suitable for applications that require data collection in large facilities or distributed systems.
Flexible input/output configuration:
This module supports multiple input and output types, including digital and analog signals.
Flexible configuration can be made to adapt to different application scenarios, such as machine protection, warning, and fault analysis.
Real time monitoring and alarm function:
Support real-time transmission of device status data through the network, enabling real-time monitoring of device health status, timely detection of faults, and issuance of alarms.
Providing high-precision data and reliable diagnostic functions can help reduce equipment failures and improve production efficiency.
Enhanced system integration capability:
The 3500/92 module can seamlessly integrate with Bently Nevada's 3500 series monitoring systems (such as the 3500/20 and 3500/40 modules) to achieve comprehensive equipment monitoring and data analysis.
Support multiple industrial standard protocols, such as Modbus, Ethernet/IP, OPC, etc., to ensure compatibility with third-party devices.
Modular design:
Adopting a modular design that supports integration with existing Bently Nevada systems, users can expand as needed for flexible deployment on site.
Easy to maintain and upgrade, expand and replace by plugging and unplugging modules.
High reliability and durability:
The module design complies with industrial environmental standards, has anti-interference ability and a wide working temperature range, and can adapt to various harsh environments.
It has redundant design and fault self diagnosis function to ensure the reliability and continuous operation of the system.
technical specifications
Model: Bently 3500/92, Order Number: 136188-02
Power input: The typical power supply voltage is 24V DC.
Interface type: Ethernet interface (supporting TCP/IP protocol) used for communication with other devices.
Input/output types: digital input, digital output, analog input, analog output, and other signal types.
Communication protocol: Supports standard protocols such as Modbus, Ethernet/IP, OPC, etc.
Network interface: Supports standard Ethernet connections and adapts to common industrial Ethernet protocols.
Environmental adaptability: The working temperature range is usually -40 ° C to 85 ° C, suitable for industrial site environments.
application area
Machine protection and equipment monitoring:
This module is mainly used to provide real-time monitoring of machines and equipment, such as pumps, compressors, generators, etc., which can capture anomalies in real time and trigger alarms.
Assist equipment maintenance personnel in implementing preventive maintenance, reducing sudden failures, and improving equipment availability and production efficiency.
Oil and gas industry:
In scenarios such as oil drilling platforms and natural gas processing plants, the 3500/92 module can be used to monitor the operational status of equipment, ensuring safe and stable operation.
Power plants and energy industry:
In the process of power production, the 3500/92 module can monitor the health status of equipment such as generator sets and transformers in real time, helping operation and maintenance personnel to predict and handle early faults.
Manufacturing and Automation Systems:
Can be used in manufacturing production lines, automated assembly, and robot systems to achieve remote monitoring and status checks of equipment, helping optimize production processes.
Infrastructure monitoring:
In large buildings or infrastructure projects, the 3500/92 module is used to monitor the operational status of critical equipment in the system in real-time, such as HVAC systems, power supply systems, etc.

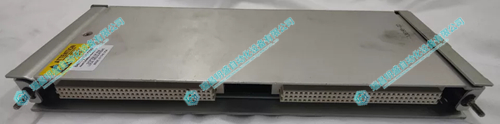

2.產 品 展 示
