BENTLY 3500/92 133323-01 繼電器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Bently Nevada 3500/92 133323-01 是一款Modbus 通信網關模塊，用于 3500 系統的監測數據集成。以下是其詳細信息：
主要功能
數據通信
- 負責將 3500 監測系統的數據傳輸到過程控制系統（DCS、PLC 等）。
- 通過 Modbus RTU（串行） 和 Modbus/TCP（以太網） 進行通信。
接口支持
- 串行通信端口：支持 RS232、RS422、RS485。
- 以太網端口：RJ45 接口，支持 10BASE-T 以太網連接。
數據處理
- 提供實時數據采集功能，傳輸監測值、警告和報警狀態。
- 可通過 Modbus 讀取振動、溫度、位移等參數信息。
Modbus 配置
- 支持 Modbus 主站和從站模式。
- 可配置 Modbus 地址和數據映射，實現與其他系統的兼容性。
產品特點
- 可靠性高：適用于工業環境，長期穩定運行。
- 靈活兼容：可無縫集成到各種自動化系統。
- 數據實時性：低延遲傳輸關鍵設備狀態信息。
- 易于配置：支持遠程管理和參數調整。
應用領域
- 旋轉機械監測（如汽輪機、壓縮機、電機、風機等）
- 過程控制系統（DCS/PLC）集成
- 石油、天然氣、發電、化工等工業場景
- 設備狀態監測與預測性維護
該模塊是 Bently Nevada 3500 系統的重要組成部分，廣泛用于工業設備的健康監測和遠程數據傳輸。
英文資料：
Bently Nevada 3500/92 133323-01 is a Modbus communication gateway module used for monitoring data integration in 3500 systems. Here is its detailed information:
major function
data communication
Responsible for transmitting data from the 3500 monitoring system to process control systems (DCS, PLC, etc.).
Communicate through Modbus RTU (serial) and Modbus/TCP (Ethernet).
Interface support
Serial communication port: Supports RS232 RS422、RS485。
Ethernet port: RJ45 interface, supports 10BASE-T Ethernet connection.
data processing
Provide real-time data collection function, transmit monitoring values, warnings, and alarm status.
Vibration, temperature, displacement and other parameter information can be read through Modbus.
Modbus configuration
Supports Modbus master and slave modes.
Configurable Modbus address and data mapping to achieve compatibility with other systems.
Product Features
High reliability: suitable for industrial environments, long-term stable operation.
Flexible compatibility: can be seamlessly integrated into various automation systems.
Real time data: Low latency transmission of critical equipment status information.
Easy to configure: supports remote management and parameter adjustment.
application area
Rotating machinery monitoring (such as steam turbines, compressors, motors, fans, etc.)
Process Control System (DCS/PLC) Integration
Industrial scenarios such as oil, natural gas, power generation, and chemical industry
Equipment status monitoring and predictive maintenance
This module is an important component of the Bently Nevada 3500 system, widely used for health monitoring and remote data transmission of industrial equipment.

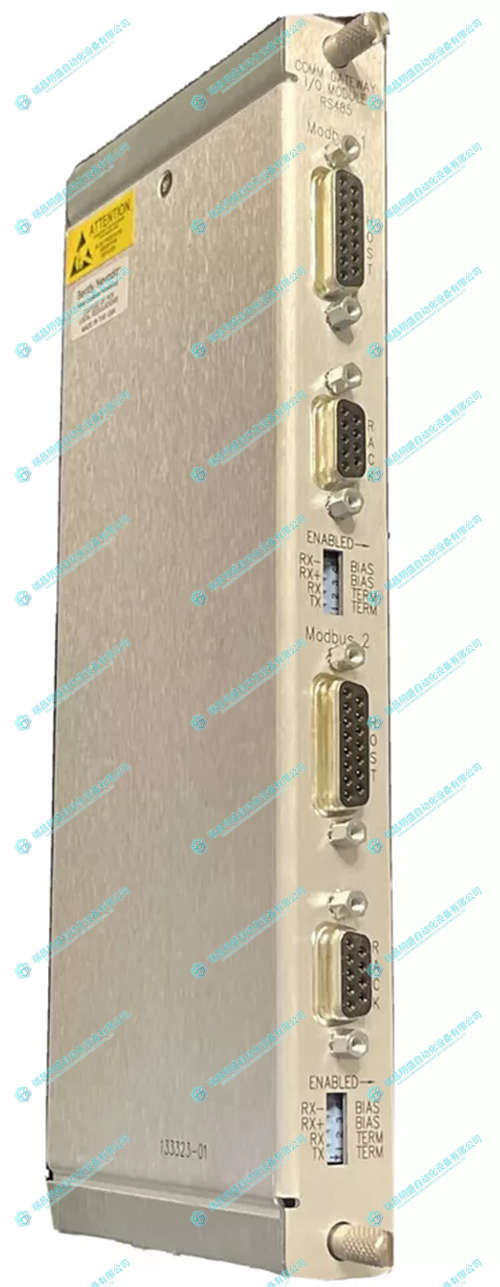

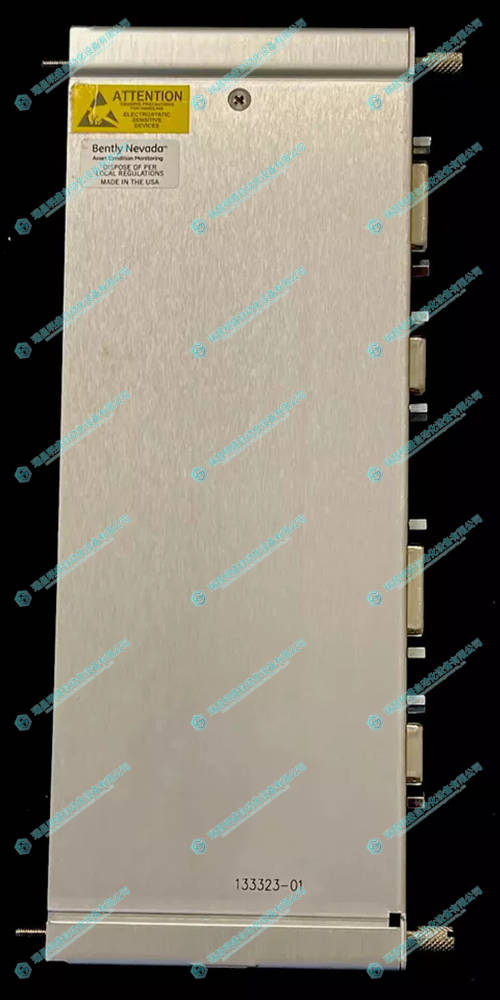

2.產 品 展 示
