GE 193X637ACG04統計板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X637ACG04 是通用電氣（General Electric）193X 系列中的一款統計控制模塊（Statistic Board），主要用于 GE 控制系統中的運行數據統計與處理功能。該板卡通常用于監控、記錄和處理工業過程中的狀態變化數據，諸如運行時間計數、故障計數、啟動頻率統計等。
作為193X系列控制系統的功能組件之一，該模塊采用模塊化插拔式結構設計，可與主控制系統進行數據交互和信號邏輯連接。
技術參數與功能特點
產品型號：193X637ACG04
產品名稱：統計板 / Statistic Board
功能類型：運行狀態計數、數據統計與輸出
典型應用功能：
運行累計時間統計
啟動/停機次數計數
故障發生次數記錄
外部信號脈沖計數及觸發邏輯
輸入信號類型：脈沖信號 / 數字信號（TTL或24V邏輯）
輸出信號類型：計數器輸出、比較信號、狀態標志位等
計數范圍：通常支持16位或更高的計數深度（以芯片型號為準）
時鐘控制：板載或外部時鐘同步控制
板載元件：邏輯IC（如計數器、鎖存器）、晶體管、電容、電阻、LED指示器等
工作電壓：+5V / ±15V DC（由系統供電）
狀態指示：帶有狀態燈（LED）顯示統計或觸發狀態
連接方式：金手指插槽式接口，適用于GE控制系統背板
工作溫度范圍：-20°C ~ +70°C
尺寸標準：符合GE 193X系列控制系統模塊規格
功能作用
對系統中各種運行狀態進行實時統計和記錄
提供啟動/停止信號的次數或頻率統計輸出
作為上位機或監控系統的數據支持模塊
觸發一定計數閾值后輸出控制信號，用于聯鎖保護或維護提醒
可與報警模塊聯動，實現周期性維護提醒功能
英文資料：
GE 193X637ACG04 is a statistical control module (Statistics Board) in the General Electric 193X series, mainly used for operational data statistics and processing functions in GE control systems. This board is typically used for monitoring, recording, and processing status change data in industrial processes, such as running time counting, fault counting, startup frequency statistics, etc.
As one of the functional components of the 193X series control system, this module adopts a modular plug-in structure design, which can exchange data and connect signal logic with the main control system.
Technical parameters and functional characteristics
Product model: 193X637ACG04
Product Name: Statistical Board
Function type: Running status counting, data statistics, and output
Typical application functions:
Accumulated running time statistics
Start/stop count
Record of the number of occurrences of faults
External signal pulse counting and triggering logic
Input signal type: pulse signal/digital signal (TTL or 24V logic)
Output signal types: counter output, comparison signal, status flag bit, etc
Counting range: usually supports a counting depth of 16 bits or higher (depending on the chip model)
Clock control: onboard or external clock synchronization control
Onboard components: logic ICs (such as counters, latches), transistors, capacitors, resistors, LED indicators, etc
Working voltage:+5V/± 15V DC (powered by the system)
Status indication: equipped with status lights (LED) to display statistics or trigger status
Connection method: Gold finger slot interface, suitable for GE control system backplane
Working temperature range: -20 ° C~+70 ° C
Size standard: Complies with GE 193X series control system module specifications
function
Real time statistics and recording of various operating states in the system
Provide statistical output of the number or frequency of start/stop signals
As a data support module for the upper computer or monitoring system
After triggering a certain counting threshold, output control signals for interlocking protection or maintenance reminders
Can be linked with the alarm module to achieve periodic maintenance reminder function

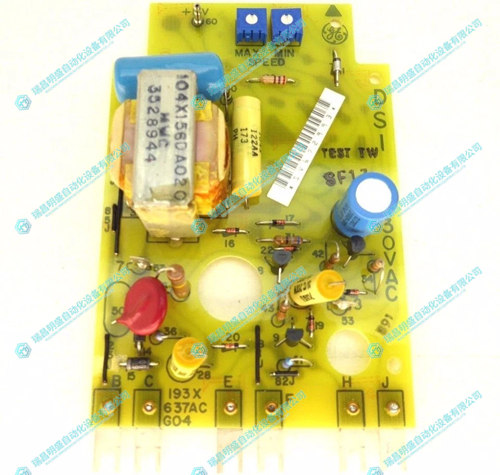

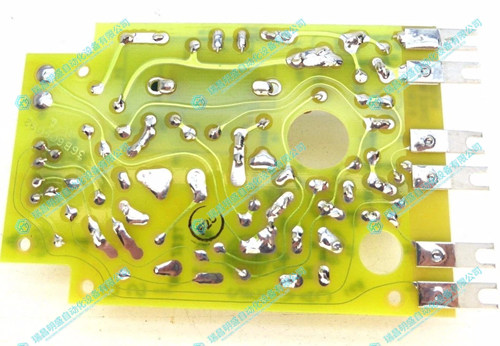

2.產 品 展 示
