GE 193X643ADG223控制卡 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X643ADG223 是通用電氣（General Electric）193X 系列中的一款重要控制卡，廣泛應用于 GE 的工業自動化系統中，特別是在控制電機、驅動系統以及與外圍設備的協調工作中發揮關鍵作用。該控制卡通過高效的信號處理和控制算法，確保系統穩定、精確地運行。
基本參數
型號：193X643ADG223
名稱：控制卡（Control Card）
系列：GE 193X 系列控制模塊
制造商：General Electric (GE)
電源要求：+5V DC / ±15V DC（通過系統電源模塊提供）
接口類型：標準金手指接口，插槽式安裝
工作溫度范圍：-20°C ～ +70°C
外形規格：符合標準 193X 系列尺寸，適用于工業自動化機柜
功能特點
核心控制功能：作為控制系統的核心模塊，提供信號處理、數據運算和輸出邏輯功能；
信號調節：支持多種輸入信號調節，包括模擬量和數字量信號的采集與轉換；
精確控制：內置高精度算法，確保系統能夠在各種工況下保持穩定運行；
模塊化設計：插槽式設計，便于集成到不同的控制系統架構中，支持熱插拔功能；
狀態指示功能：提供 LED 狀態指示燈，便于現場維護和故障診斷；
兼容性強：與 GE 其他控制模塊和外部設備的兼容性強，能夠在不同的工業應用中靈活使用。
英文資料：
GE 193X643ADG223 is an important control card in the General Electric 193X series, widely used in GE's industrial automation systems, especially playing a key role in controlling motors, drive systems, and coordinating with peripheral devices. This control card ensures stable and precise operation of the system through efficient signal processing and control algorithms.
Basic parameters
Model: 193X643ADG223
Name: Control Card
Series: GE 193X series control module
Manufacturer: General Electric (GE)
Power requirements:+5V DC/± 15V DC (provided through the system power module)
Interface type: Standard gold finger interface, slot type installation
Working temperature range: -20 ° C to+70 ° C
Exterior specifications: Compliant with standard 193X series dimensions, suitable for industrial automation cabinets
Functional Features
Core control function: As the core module of the control system, it provides signal processing, data operation, and output logic functions;
Signal conditioning: supports multiple input signal conditioning, including the acquisition and conversion of analog and digital signals;
Precise control: Built in high-precision algorithms ensure that the system can maintain stable operation under various working conditions;
Modular design: slot style design, easy to integrate into different control system architectures, supports hot swapping function;
Status indication function: Provide LED status indicator lights for easy on-site maintenance and fault diagnosis;
Strong compatibility: It has strong compatibility with other GE control modules and external devices, and can be flexibly used in different industrial applications.

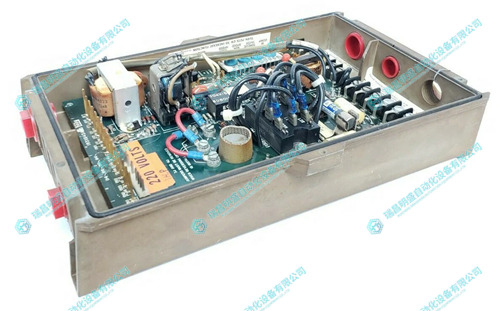

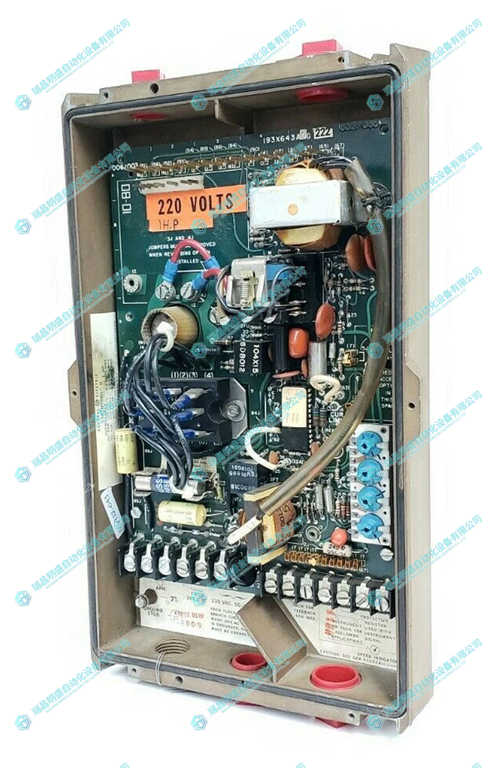

2.產 品 展 示
