GE 193X643AFG221主控制板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X643AFG221 是通用電氣（General Electric）193X 系列中的一款高性能主控制板（Main Control Board），主要應用于工業自動化系統中，作為核心控制單元，承擔著信號采集、處理、輸出控制及系統反饋調節等重要任務。該控制板采用先進的集成電路和優化設計，能夠高效、穩定地運行于各種復雜的工業環境中。
基本參數
產品型號：193X643AFG221
產品名稱：主控制板（Main Control Board）
系列：GE 193X 系列控制模塊
制造商：General Electric (GE)
電源要求：+5V DC / ±15V DC（由系統電源模塊提供）
接口類型：標準金手指接口，插槽式安裝
工作溫度范圍：-20°C ～ +70°C
外形規格：符合標準 193X 系列尺寸，適用于工業自動化控制系統機柜
功能特點
核心控制單元：作為工業自動化系統的主控制單元，負責全局控制、數據處理、任務分配及故障監控等功能；
高性能運算：采用高效的數字信號處理（DSP）和微處理器，支持實時數據計算與反饋調節；
精確控制：支持多通道信號輸入輸出，提供高精度的控制響應與實時調整；
廣泛兼容性：與其他 GE 控制模塊、驅動設備兼容，支持標準通信協議和接口；
自動故障檢測：內建智能故障診斷和報警功能，實時監控系統狀態，確保系統高效穩定運行；
狀態指示燈：配備多功能LED指示燈，用于顯示設備工作狀態、故障報警及診斷信息。
英文資料：
GE 193X643AFG221 is a high-performance Main Control Board in the General Electric 193X series, mainly used in industrial automation systems. As the core control unit, it undertakes important tasks such as signal acquisition, processing, output control, and system feedback adjustment. The control board adopts advanced integrated circuits and optimized design, which can operate efficiently and stably in various complex industrial environments.
Basic parameters
Product model: 193X643AFG221
Product Name: Main Control Board
Series: GE 193X series control module
Manufacturer: General Electric (GE)
Power requirements:+5V DC/± 15V DC (provided by the system power module)
Interface type: Standard gold finger interface, slot type installation
Working temperature range: -20 ° C to+70 ° C
Exterior specifications: Compliant with standard 193X series dimensions, suitable for industrial automation control system cabinets
Functional Features
Core control unit: As the main control unit of industrial automation systems, responsible for global control, data processing, task allocation, and fault monitoring functions;
High performance computing: using efficient digital signal processing (DSP) and microprocessors, supporting real-time data calculation and feedback adjustment;
Precise control: supports multi-channel signal input and output, providing high-precision control response and real-time adjustment;
Wide compatibility: Compatible with other GE control modules and driver devices, supporting standard communication protocols and interfaces;
Automatic fault detection: Built in intelligent fault diagnosis and alarm functions, real-time monitoring of system status to ensure efficient and stable operation of the system;
Status indicator light: equipped with multifunctional LED indicator lights, used to display equipment working status, fault alarms, and diagnostic information.

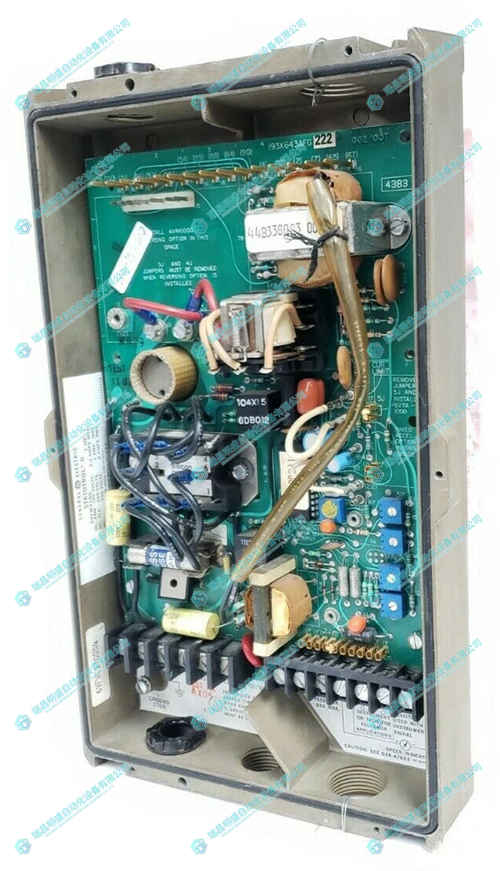

2.產 品 展 示
