GE 193X643AGG113靜態驅動控制板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X643AGG113 是通用電氣（General Electric）193X 系列中的一款靜態驅動控制板（Static Drive Control Board），它是工業自動化控制系統中的重要組件之一，負責電機驅動系統中的靜態驅動控制與信號調節。該控制板通過精密的電路設計，提供高效、穩定的驅動控制和電流調整能力，廣泛應用于自動化生產線、機器人系統以及其他需要電機驅動的場景。
基本參數
產品型號：193X643AGG113
產品名稱：靜態驅動控制板（Static Drive Control Board）
系列：GE 193X 系列控制模塊
制造商：General Electric (GE)
電源要求：+5V DC / ±15V DC（通過系統電源模塊提供）
接口類型：標準金手指接口，插槽式安裝
工作溫度范圍：-20°C ～ +70°C
外形規格：符合標準 193X 系列尺寸，適用于工業自動化控制系統機柜
功能特點
電機靜態驅動控制：該控制板能夠精確調節電機的靜態驅動信號，實現電機的穩定運行和高效控制；
高精度電流調整：通過精確的電流控制，確保電機的電流調節平穩，避免過載或不穩定的情況；
保護功能：內置過載保護、短路保護等安全功能，能夠防止電機系統出現故障時造成損壞；
多通道信號處理：支持多通道輸入信號，能夠同時控制多個電機或多個驅動系統，廣泛應用于多軸機器人和多機協作的場景；
快速響應能力：通過優化的控制算法，確保驅動板對輸入信號的快速響應與實時調整，保證電機驅動精度；
集成化設計：集成化設計簡化了系統接線，減少了安裝和維護的復雜度，適用于大規模工業自動化應用。
應用領域
工業自動化控制：廣泛用于自動化生產線、電機驅動系統，精確控制各類電機的運動與輸出；
機器人系統：在工業機器人中用于電機驅動控制，確保機器人高效、精確地執行任務；
電力設備控制：適用于電力系統中用于電機的啟動、停止及速度控制，如風力發電、電力調度等領域；
高精度設備驅動：應用于需要高精度電機控制的設備，如數控機床、精密儀器等；
英文資料：
GE 193X643AGG113 is a Static Drive Control Board in the General Electric 193X series. It is an important component in industrial automation control systems, responsible for static drive control and signal regulation in motor drive systems. This control board provides efficient and stable drive control and current adjustment capabilities through precise circuit design, and is widely used in automated production lines, robot systems, and other scenarios that require motor drive.
Basic parameters
Product model: 193X643AGG113
Product Name: Static Drive Control Board
Series: GE 193X series control module
Manufacturer: General Electric (GE)
Power requirements:+5V DC/± 15V DC (provided through the system power module)
Interface type: Standard gold finger interface, slot type installation
Working temperature range: -20 ° C to+70 ° C
Exterior specifications: Compliant with standard 193X series dimensions, suitable for industrial automation control system cabinets
Functional Features
Motor static drive control: This control board can accurately adjust the static drive signal of the motor, achieving stable operation and efficient control of the motor;
High precision current adjustment: By precise current control, the motor's current regulation is ensured to be smooth, avoiding overload or unstable situations;
Protection function: Built in overload protection, short circuit protection and other safety functions can prevent damage caused by motor system failure;
Multi channel signal processing: supports multi-channel input signals, can simultaneously control multiple motors or multiple drive systems, widely used in scenarios of multi axis robots and multi machine collaboration;
Quick response capability: By optimizing control algorithms, the drive board ensures fast response and real-time adjustment to input signals, ensuring motor drive accuracy;
Integrated design: Integrated design simplifies system wiring, reduces installation and maintenance complexity, and is suitable for large-scale industrial automation applications.
application area
Industrial automation control: widely used in automated production lines and motor drive systems to precisely control the motion and output of various motors;
Robot system: used for motor drive control in industrial robots to ensure efficient and accurate task execution;
Power equipment control: suitable for starting, stopping, and speed control of motors in power systems, such as wind power generation, power dispatch, and other fields;
High precision equipment driver: applied to equipment that requires high-precision motor control, such as CNC machine tools, precision instruments, etc;

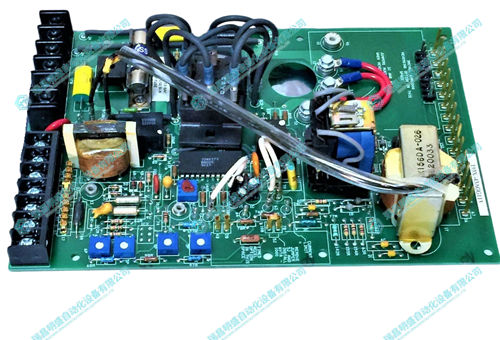

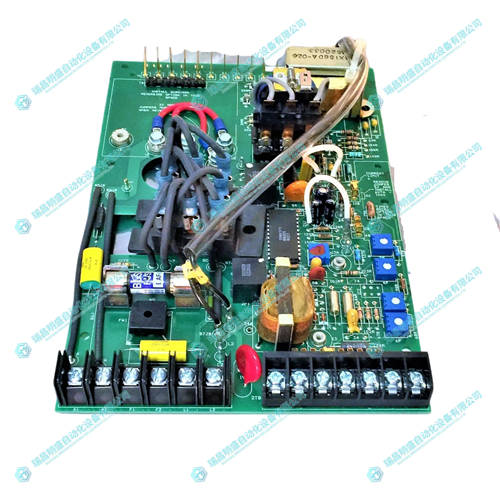

2.產 品 展 示
