GE 193X643AHG222控制器板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X643AHG222 控制器板技術說明
產品型號：193X643AHG222
產品名稱：控制器板（Controller Board）
所屬系列：GE 193X 系列控制模塊
制造廠商：General Electric (GE)
產品概述
GE 193X643AHG222 是 GE 193X 系列中的一款高性能控制器板，用于工業驅動系統中的主控邏輯控制部分。該模塊設計用于協調和管理電動驅動系統中的信號處理、邏輯判斷與狀態控制，是驅動系統中關鍵的邏輯與功能處理核心，適用于各類電機控制、變頻調速與自動化場景。
技術參數
供電電壓：+5V / ±15V DC（由系統統一供電）
安裝方式：插槽式金手指連接，適配193X機架系統
尺寸規格：標準193X板卡尺寸
工作溫度：-20℃ ～ +70℃
存儲溫度：-40℃ ～ +85℃
電氣接口：多針金手指信號接口，支持多信號并行處理
信號類型：模擬輸入/輸出 + 數字控制信號
主要功能
邏輯控制核心：作為驅動系統的中央控制板，193X643AHG222 負責采集、分析并輸出系統運行控制邏輯；
狀態監控管理：實時監控系統運行狀態，并根據傳感器/信號輸入，做出快速邏輯響應；
故障自診斷功能：具備基本自檢與錯誤反饋功能，提高系統穩定性與維護效率；
高速處理能力：具備對高速電機變化的響應能力，適用于高頻啟動/停止等場景；
接口兼容性強：兼容 GE 多種其他 193X 系列模塊（如驅動板、電源板、接口板等），便于模塊化配置。
英文資料：
Technical Description of GE 193X643AHG222 Controller Board
Product model: 193X643AHG222
Product Name: Controller Board
Series: GE 193X series control module
Manufacturer: General Electric (GE)
product overview
GE 193X643AHG222 is a high-performance controller board in the GE 193X series, used for the main control logic control part in industrial drive systems. This module is designed to coordinate and manage signal processing, logic judgment, and status control in electric drive systems. It is a key logic and functional processing core in the drive system and is suitable for various motor control, variable frequency speed regulation, and automation scenarios.
Technical Parameter
Supply voltage:+ 5V/± 15V DC (supplied uniformly by the system)
Installation method: Slot style gold finger connection, compatible with 193X rack system
Size specification: Standard 193X board size
Working temperature:- 20℃ ～ +70℃
Storage temperature:- 40℃ ～ +85℃
Electrical interface: Multi pin gold finger signal interface, supporting parallel processing of multiple signals
Signal type: Analog input/output+digital control signal
major function
Logic control core: As the central control board of the driving system, 193X643AHG222 is responsible for collecting, analyzing, and outputting system operation control logic;
Status monitoring management: Real time monitoring of system operation status and rapid logical response based on sensor/signal input;
Fault self diagnosis function: equipped with basic self checking and error feedback functions, improving system stability and maintenance efficiency;
High speed processing capability: capable of responding to changes in high-speed motors, suitable for high-frequency start/stop scenarios;
Strong interface compatibility: compatible with various other 193X series modules from GE (such as driver boards, power boards, interface boards, etc.), making it easy to configure modularly.

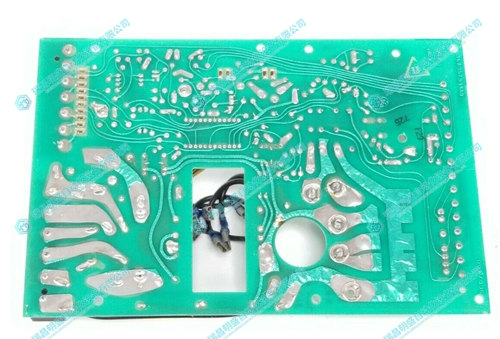

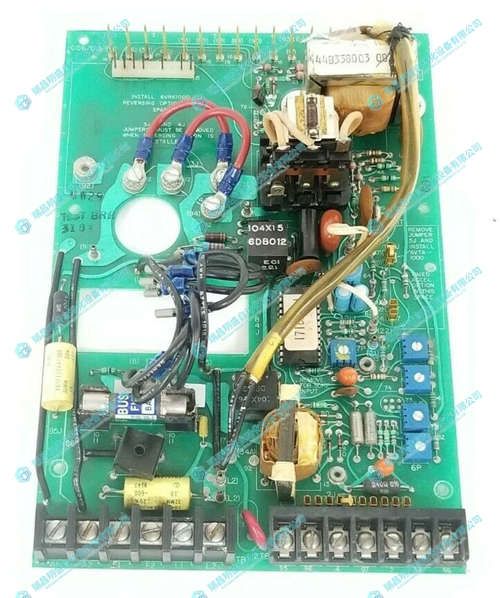

2.產 品 展 示
