GE 193X703ACG04統計板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X703ACG04 統計板（Statis Board）技術說明
產品型號：193X703ACG04
產品類型：Statis Board（統計模塊）
制造商：General Electric (GE)
所屬系列：193X 控制模塊系列
典型應用：早期工業驅動系統（如DC驅動器、Speedtronic系統）
主要功能
對輸入信號進行統計、檢測與邏輯處理；
用于電氣狀態變化次數的統計（如電流、脈沖、速度等參數）；
觸發后續邏輯，如繼電器動作、報警信號輸出；
與控制系統聯動，實現狀態監控與保護功能。
技術特性（典型）
輸入信號類型：模擬量、電壓信號、數字脈沖信號；
邏輯輸出：TTL 或繼電器控制信號（根據設計版本）；
控制電壓：通常為 ±15VDC、24VDC（依據系統供電）；
接口方式：金手指邊緣連接器，用于插入主控制架；
電路結構：板上含有運算放大器、電容、電阻、比較器和晶體管電路等；
兼容模塊：可與193X系列其他模塊（如繼電器板、放大器板）聯合使用。
應用場景
GE Mark 系列汽輪機控制系統；
大型DC驅動控制系統；
早期電力或機械控制設備的狀態檢測模塊；
工業設備中的信號分析與異常響應模塊。
運維建議
定期檢查：確認輸入信號處理是否正常，檢測統計邏輯是否失效；
避免電磁干擾和潮濕環境；
出現統計錯誤、動作遲緩、無輸出時應考慮更換整板；
如板上出現燒毀痕跡，可能為外部信號電壓過高導致。
英文資料：
GE 193X703ACG04 Statistics Board Technical Description
Product model: 193X703ACG04
Product type: Statistics Board
Manufacturer: General Electric (GE)
Series: 193X Control Module Series
Typical applications: Early industrial drive systems (such as DC drives, Speedtronic systems)
major function
Statistics, detection, and logical processing of input signals;
Used for statistical analysis of the number of electrical state changes (such as parameters such as current, pulse, speed, etc.);
Trigger subsequent logic, such as relay action and alarm signal output;
Integrate with the control system to achieve status monitoring and protection functions.
Technical characteristics (typical)
Input signal types: analog signal, voltage signal, digital pulse signal;
Logic output: TTL or relay control signal (depending on the design version);
Control voltage: usually ± 15VDC, 24VDC (depending on the system power supply);
Interface method: Gold finger edge connector, used for inserting into the main control rack;
Circuit structure: The board contains operational amplifiers, capacitors, resistors, comparators, and transistor circuits, etc;
Compatible module: Can be used in conjunction with other modules in the 193X series, such as relay boards and amplifier boards.
Application scenarios
GE Mark series turbine control system;
Large DC drive control system;
Early state detection modules for electrical or mechanical control equipment;
Signal analysis and abnormal response module in industrial equipment.
Operation and maintenance suggestions
Regular inspection: Confirm whether the input signal processing is normal and check whether the statistical logic is invalid;
Avoid electromagnetic interference and humid environments;
When there are statistical errors, slow movements, or no output, consider replacing the entire board;
If there are burn marks on the board, it may be caused by high external signal voltage.

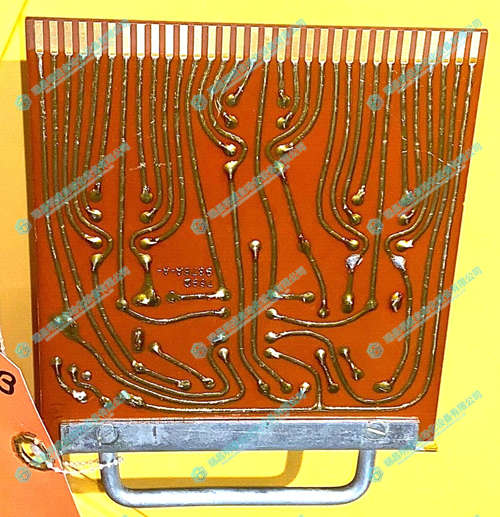

2.產 品 展 示
