GE 193X703ADG02繼電器板卡 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X703ADG02 繼電器板卡 技術說明
產品型號：193X703ADG02
產品名稱：繼電器板卡（Relay Board）
制造商：General Electric (GE)
產品系列：193X 控制卡系列
典型用途：驅動控制系統、狀態切換、信號中繼與報警聯鎖控制
一、產品功能
193X703ADG02 是 GE 193X 系列中的一塊多通道繼電器控制板，其主要作用是：
接收邏輯控制信號并控制多個繼電器動作；
實現電氣設備的遠程控制、聯鎖保護、故障隔離；
與其他控制板（如AAG、ACG、BAG等）配合完成完整控制邏輯。
二、典型技術參數
| 參數項目 | 描述 |
|---|---|
| 控制輸入 | 數字控制信號（來自控制器或邏輯電路） |
| 輸出接口 | 干接點繼電器輸出（通常為常開NO或常閉NC） |
| 控制電壓 | 常為 24V DC 或 ±15V DC（取決于系統配置） |
| 安裝方式 | 插入式金手指連接，兼容193X主控制架 |
| 板上配置 | 多個小型繼電器、電阻、電容、晶體管、續流二極管等 |
| 尺寸規格 | 標準 GE 193X 板卡尺寸（前端帶有抓手，便于插拔） |
三、實際應用場景
GE 早期直流驅動控制系統（如 DC2000 或類似系統）；
汽輪機自動化控制系統（Speedtronic Mark 系列）；
工業控制機柜中的邏輯切換模塊或遠程繼電控制；
用于電機啟停、閥門開關、故障輸出報警等動作邏輯。
四、維護與診斷建議
檢查繼電器動作情況：是否吸合正常、有無延遲或不響應；
檢測觸點磨損：長時間使用后觸點可能燒蝕，建議定期更換；
信號跟蹤調試：若動作不正常，需檢查控制輸入是否達到繼電器觸發電平；
整體更換建議：如板上器件損壞或PCB碳化，建議更換整板。
英文資料：
Technical Description of GE 193X703ADG02 Relay Board
Product model: 193X703ADG02
Product Name: Relay Board
Manufacturer: General Electric (GE)
Product Series: 193X Control Card Series
Typical applications: Drive control system, state switching, signal relay and alarm interlock control
1、 Product Features
193X703ADG02 is a multi-channel relay control board in the GE 193X series, mainly used for:
Receive logic control signals and control multiple relay actions;
Realize remote control, interlocking protection, and fault isolation of electrical equipment;
Collaborate with other control boards (such as AAG, ACG, BAG, etc.) to complete the complete control logic.
2、 Typical technical parameters
Parameter project description
Control input digital control signal (from controller or logic circuit)
Output interface dry contact relay output (usually normally open NO or normally closed NC)
The control voltage is usually 24V DC or ± 15V DC (depending on the system configuration)
Installation method: Plug in gold finger connection, compatible with 193X main control rack
Multiple small relays, resistors, capacitors, transistors, freewheeling diodes, etc. are configured on the board
Size specification standard GE 193X board size (with a gripper at the front end for easy insertion and removal)
3、 Actual application scenarios
Early GE DC drive control systems (such as DC2000 or similar systems);
Turbine automation control system (Speedtronic Mark series);
Logic switching module or remote relay control in industrial control cabinets;
Used for motor start stop, valve switch, fault output alarm and other action logic.
4、 Maintenance and diagnostic recommendations
Check the operation of the relay: whether it is closed normally, whether there is any delay or no response;
Detecting contact wear: After prolonged use, the contacts may burn and it is recommended to replace them regularly;
Signal tracking debugging: If the action is abnormal, check whether the control input reaches the relay trigger level;
Overall replacement suggestion: If the components on the board are damaged or the PCB is carbonized, it is recommended to replace the entire board.

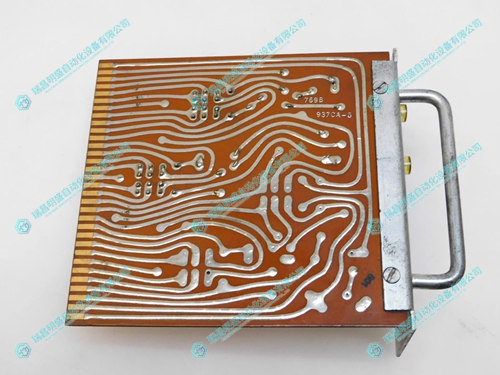

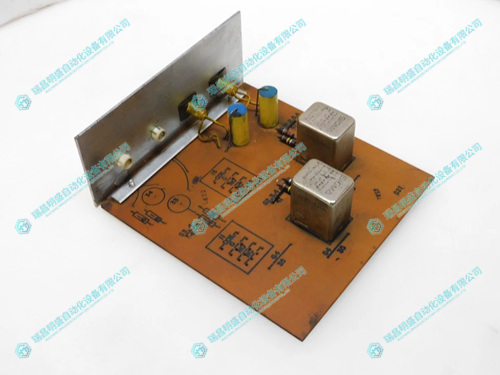

2.產 品 展 示
