GE 193X706AAG01緩沖放大器卡 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X706AAG01 緩沖放大器卡技術資料
產品型號：193X706AAG01
產品名稱：緩沖放大器卡（Buffer Amplifier Card）
制造商：General Electric (GE)
系列：193X 系列控制板卡
功能分類：信號緩沖與放大模塊（Signal Buffering and Amplification）
應用領域：工業控制、數據采集與處理系統
一、功能說明
GE 193X706AAG01 緩沖放大器卡是一種專為 GE 工業自動化系統設計的信號處理模塊。它的主要功能是增強、放大輸入信號，使其滿足系統的輸入要求，并且提供信號緩沖以確保穩定的信號傳遞。該卡廣泛應用于需要信號增益或緩沖的控制系統中，如 PLC 控制系統、工業驅動控制、過程控制等領域。
二、主要技術參數
| 參數項 | 說明描述 |
|---|---|
| 輸入信號類型 | 模擬信號（如電壓、電流信號），常見為 0-10V、4-20mA 等 |
| 輸出信號類型 | 放大后的模擬信號，通常為 0-10V 或其他標準電壓/電流輸出 |
| 放大增益 | 固定或可調增益，通常為 1x、10x、100x 等，具體依照卡的設計而定 |
| 信號隔離 | 具備輸入與輸出的電氣隔離，防止信號干擾或高電壓影響系統 |
| 供電電壓 | ±15V DC 或 24V DC（依據系統供電標準） |
| 工作溫度范圍 | 通常為 -40°C 到 +85°C，適用于工業環境 |
| 連接方式 | 插卡式，適配 GE 193X 系列控制機架 |
| 卡片尺寸 | 標準 GE 插卡式模塊尺寸，符合 193X 系列格式 |
| 輸入/輸出接口類型 | 通常為接線端子或插針接口，用于連接外部設備或傳感器 |
英文資料：
GE 193X706AAG01 Buffer Amplifier Card Technical Data
Product model: 193X706AAG01
Product Name: Buffer Amplifier Card
Manufacturer: General Electric (GE)
Series: 193X series control board
Function classification: Signal Buffering and Amplification Module
Application areas: Industrial control, data acquisition and processing systems
1、 Function Description
The GE 193X706AAG01 buffer amplifier card is a signal processing module designed specifically for GE industrial automation systems. Its main function is to enhance and amplify input signals to meet the input requirements of the system, and provide signal buffering to ensure stable signal transmission. This card is widely used in control systems that require signal gain or buffering, such as PLC control systems, industrial drive control, process control, and other fields.
2、 Main technical parameters
Parameter item description
The input signal type is analog signal (such as voltage, current signal), commonly ranging from 0-10V, 4-20mA, etc
Output signal type: amplified analog signal, usually 0-10V or other standard voltage/current output
The amplification gain is fixed or adjustable, usually 1x, 10x, 100x, etc., depending on the design of the card
Signal isolation has electrical isolation between input and output to prevent signal interference or high voltage from affecting the system
Power supply voltage ± 15V DC or 24V DC (according to system power supply standards)
The working temperature range is usually -40 ° C to+85 ° C, suitable for industrial environments
Connection method plug-in card, compatible with GE 193X series control rack
Card size standard GE plug-in card module size, in accordance with the 193X series format
The input/output interface type is usually a terminal block or pin interface, used to connect external devices or sensors

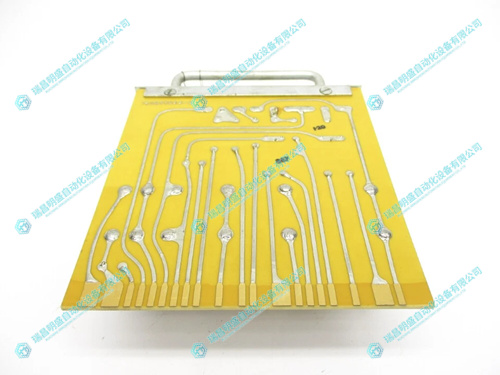

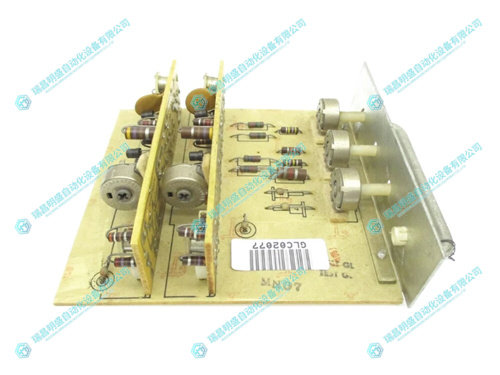

2.產 品 展 示
