GE 193X711AEG03功率放大器卡 PDF資料
1.產 品 資 料 介 紹：
中文資料：
一、產品概述
193X711AEG03 是由美國 GE（通用電氣）公司生產的 193X 系列工業控制模塊之一，專用于電機驅動系統中的功率放大控制。該卡通常部署于大型工業驅動或發電設備中，用于提供驅動所需的放大控制電流或電壓信號。
二、主要功能
信號放大：將控制板或調節板輸出的低電平信號進行電壓或電流放大，滿足驅動模塊所需功率等級。
驅動接口：向主功率模塊（如可控硅整流器或逆變器）提供觸發信號。
保護功能：具備基本的電流限制、過溫保護、輸出限幅等功能。
信號隔離：輸入與輸出回路之間具備光電或磁隔離，提高系統抗干擾能力。
閉環反饋支持：可與外部速度、電流、電壓傳感器配合，構成閉環控制系統。
三、技術參數（典型值，僅供參考）
供電電壓：+5V、±15V DC（來自系統母板）
輸入信號類型：模擬電壓信號（如 0–10V）、數字觸發信號等
輸出電流能力：驅動大功率器件的控制級電流（數十至數百 mA）
信號增益：固定或可調（依模塊設定）
接口類型：邊緣連接器，插入式安裝
冷卻方式：依靠系統風冷，部分型號配散熱器
工作溫度：-10°C ～ +60°C
尺寸規格：193X 系列標準卡件尺寸
四、應用領域
工業電機控制系統（直流調速或變頻驅動）
GE Mark II/Mark IV 汽輪機控制系統
大型風機、水泵控制中心
電力設備調壓控制
自動化生產線主驅動裝置控制部分
英文資料：
1、 Product Overview
193X711AEG03 is one of the 193X series industrial control modules produced by General Electric in the United States, specifically designed for power amplification control in motor drive systems. This card is often deployed in large industrial drives or power generation equipment to provide amplified control current or voltage signals required for driving.
2、 Main functions
Signal amplification: Amplify the low-level signal output by the control board or regulating board with voltage or current to meet the required power level of the driving module.
Drive interface: Provide trigger signals to the main power module (such as thyristor rectifier or inverter).
Protection function: It has basic functions such as current limiting, over temperature protection, and output limiting.
Signal isolation: There is photoelectric or magnetic isolation between the input and output circuits to improve the system's anti-interference ability.
Closed loop feedback support: It can be combined with external speed, current, and voltage sensors to form a closed-loop control system.
3、 Technical parameters (typical values, for reference only)
Power supply voltage:+5V, ± 15V DC (from the system motherboard)
Input signal type: analog voltage signal (such as 0-10V), digital trigger signal, etc
Output current capability: Control level current for driving high-power devices (tens to hundreds of mA)
Signal gain: fixed or adjustable (depending on module settings)
Interface type: Edge connector, plug-in installation
Cooling method: relying on system air cooling, some models are equipped with radiators
Working temperature: -10 ° C to+60 ° C
Size specification: 193X series standard card size
4、 Application Fields
Industrial motor control system (DC speed regulation or variable frequency drive)
GE Mark II/Mark IV Turbine Control System
Large scale fan and water pump control center
Voltage regulation control of power equipment
Main drive device control part of automated production line

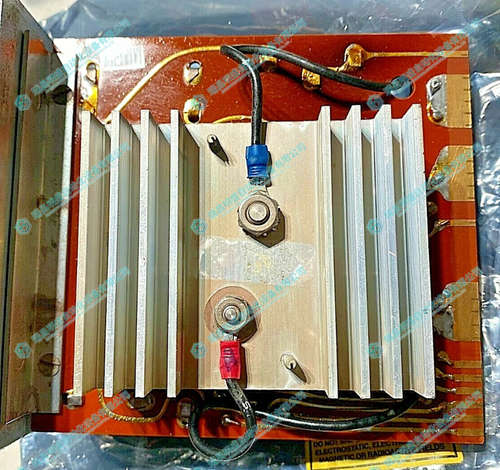

2.產 品 展 示
