GE 193X717AAG01電源模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
一、產品簡介
193X717AAG01 是 GE（通用電氣）生產的 193X 系列中的電源模塊，專門設計用于為 GE 的工業控制系統、驅動系統或發電控制系統提供穩定的電力供應。該模塊用于轉換和調節電源，確保系統內部各個模塊的電力需求得到滿足，并提供保護功能。
二、主要功能
電壓轉換與調節：將主電源（如 AC 或 DC）轉換為系統所需的標準電壓，常見輸出為 +15V、-15V 和 +5V。
電流供應：提供穩定的電流輸出，滿足多個控制模塊和傳感器的電力需求。
過電壓與過電流保護：內置電流和電壓保護電路，防止因電源異常導致系統損壞。
負載調節：能夠自動調整輸出電壓，以適應負載變化，保持系統穩定運行。
冗余設計：支持雙電源輸入或冗余電源配置，提高系統的可靠性和穩定性。
過熱保護：內置溫度傳感器，實時監測模塊溫度，防止過熱引起的故障。
三、技術參數（典型值，參考用途）
輸入電壓：AC 220V 或 DC 24V（可根據系統需求選擇）
輸出電壓：+15V、-15V、+5V（標準輸出）
輸出電流能力：5A（具體取決于輸出電壓和負載要求）
輸出功率：約 75W（取決于配置和負載）
效率：≥85%（典型）
過載保護：支持短路、過電流、過電壓保護
工作溫度：-10°C 到 +60°C
安裝方式：標準 193X 插卡式結構
尺寸：符合 193X 系列標準尺寸（大約 25 × 15 cm）
四、應用領域
工業控制系統：用于各種工業自動化設備中，保證控制板、傳感器和執行機構正常工作。
驅動系統：為變頻驅動、大功率電機控制系統等提供穩定電源。
發電廠控制：為火力、水力、風力發電系統中的控制設備提供電力。
電力設備：為配電系統中的控制和保護設備供電。
數據中心：用于提供穩壓電源，以支持計算機及相關設備運行。
英文資料：
Brief introduction
193X717AAG01 is a power module in the 193X series produced by GE, specifically designed to provide stable power supply for GE's industrial control systems, drive systems, or power generation control systems. This module is used to convert and regulate power sources, ensuring that the power requirements of various modules within the system are met, and providing protection functions.
2、 Main functions
Voltage conversion and regulation: Convert the main power supply (such as AC or DC) to the standard voltage required by the system, with common outputs of+15V, -15V, and+5V.
Current supply: Provides stable current output to meet the power needs of multiple control modules and sensors.
Overvoltage and overcurrent protection: Built in current and voltage protection circuits to prevent system damage caused by abnormal power supply.
Load regulation: It can automatically adjust the output voltage to adapt to load changes and maintain stable system operation.
Redundant design: Supports dual power input or redundant power configuration to improve system reliability and stability.
Overheating protection: Built in temperature sensor, real-time monitoring of module temperature to prevent faults caused by overheating.
3、 Technical parameters (typical values, reference purposes)
Input voltage: AC 220V or DC 24V (can be selected according to system requirements)
Output voltage:+15V, -15V,+5V (standard output)
Output current capability: 5A (depending on output voltage and load requirements)
Output power: approximately 75W (depending on configuration and load)
Efficiency: ≥ 85% (typical)
Overload protection: supports short circuit, overcurrent, and overvoltage protection
Working temperature: -10 ° C to+60 ° C
Installation method: Standard 193X plug-in card structure
Size: Complies with the 193X series standard size (approximately 25 × 15 cm)
4、 Application Fields
Industrial control system: used in various industrial automation equipment to ensure the normal operation of control boards, sensors, and actuators.
Drive system: provides stable power supply for variable frequency drive, high-power motor control system, etc.
Power plant control: providing power to control equipment in thermal, hydraulic, and wind power generation systems.
Power equipment: supplies power to control and protection devices in the distribution system.
Data center: used to provide regulated power supply to support the operation of computers and related equipment.

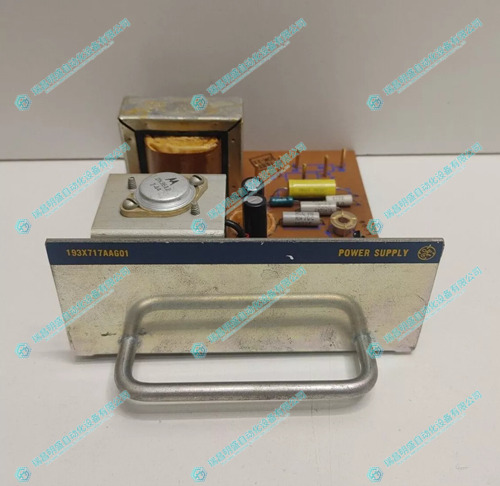

2.產 品 展 示
