ABB SYN5202a-Z,V221 3BHB006715R0221控制系統模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
ABB SYN5202a-Z,V221 3BHB006715R0221 控制系統模塊 是 ABB Symphony Plus 系列控制系統的一部分，廣泛應用于工業自動化、過程控制及能源管理等領域。此模塊作為系統的一部分，承擔著自動化控制、信號采集、數據處理等多重任務，確保系統的穩定性與高效性。
一、基本信息
產品型號：SYN5202a-Z,V221
產品編號：3BHB006715R0221
系列：ABB Symphony Plus 系統
類型：控制系統模塊
功能：自動化控制、信號處理、設備管理、數據交換等
安裝方式：模塊化設計，適用于標準機架安裝
系統平臺：Symphony Plus 控制系統（DCS）
二、主要功能
信號采集與處理：該模塊能從現場設備（如傳感器、執行器等）獲取數字或模擬信號，并進行處理、轉換，確保控制系統的實時反應。
數據通訊與控制：支持與上位控制系統進行實時數據交換，確保系統之間的協調與控制命令的精確執行。
高效冗余設計：該模塊支持冗余配置，保障系統穩定性與可靠性，在工業環境中尤其重要。
設備管理與診斷：提供設備狀態監控與自診斷功能，便于系統維護人員及時發現并解決故障。
擴展性與兼容性：該模塊兼容多種 ABB Symphony Plus 系列的硬件和軟件，具有較強的系統擴展能力。
英文資料：
The ABB SYN5202a-Z, V221 3BHB006715R0221 control system module is part of the ABB Symphony Plus series of control systems, widely used in industrial automation, process control, and energy management fields. As a part of the system, this module undertakes multiple tasks such as automation control, signal acquisition, and data processing, ensuring the stability and efficiency of the system.
1、 Basic Information
Product model: SYN5202a-Z, V221
Product Code: 3BHB006715R0221
Series: ABB Symphony Plus System
Type: Control System Module
Functions: automation control, signal processing, equipment management, data exchange, etc
Installation method: Modular design, suitable for standard rack installation
System Platform: Symphony Plus Control System (DCS)
2、 Main functions
Signal acquisition and processing: This module can obtain digital or analog signals from field devices such as sensors, actuators, etc., and process and convert them to ensure real-time response of the control system.
Data communication and control: Support real-time data exchange with the upper control system to ensure coordination between systems and precise execution of control commands.
Efficient redundancy design: This module supports redundant configuration to ensure system stability and reliability, which is particularly important in industrial environments.
Equipment management and diagnosis: Provide equipment status monitoring and self diagnosis functions to facilitate timely detection and resolution of faults by system maintenance personnel.
Scalability and compatibility: This module is compatible with multiple ABB Symphony Plus series hardware and software, and has strong system expansion capabilities.

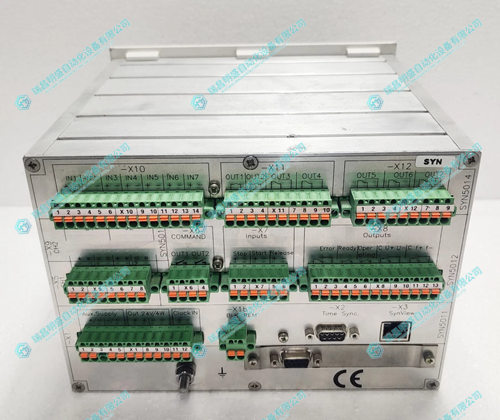

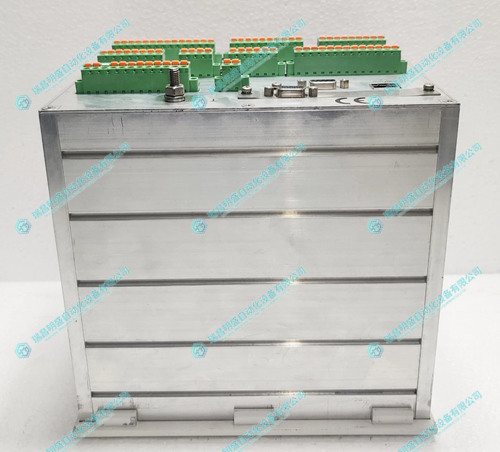

2.產 品 展 示
