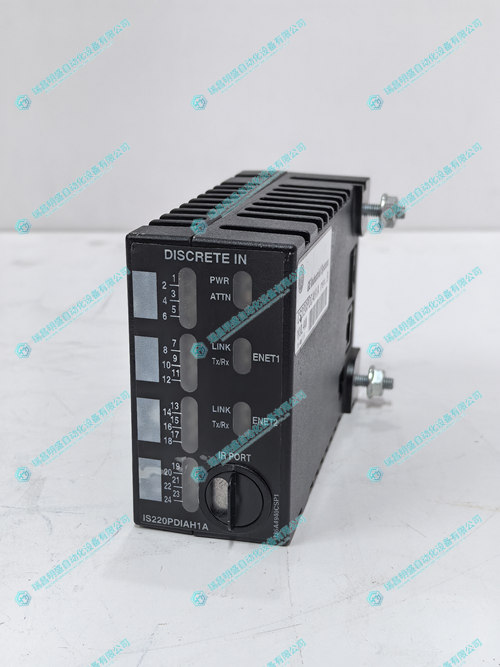

GE IS220PDIAH1A 獨立模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
IS220PDIAH1A 是 Mark VIe 控制系統中的一個DIN 導軌安裝型數字輸入模塊，用于采集工業現場的干接點或有源/無源開關信號。該模塊支持多通道數字輸入，每個通道獨立隔離，并通過 IONet 與主控系統（如控制器或 I/O Pack）通信。
主要技術參數
| 項目 | 說明 |
|---|---|
| 模塊類型 | 數字輸入模塊（PDI：Packaged Digital Input） |
| 輸入通道數量 | 16 路隔離數字輸入通道 |
| 輸入電壓范圍 | 通常為 24V DC（邏輯“1”有效） |
| 通道絕緣 | 每通道隔離（與地和其他通道之間） |
| 通道狀態LED指示 | 每個通道有對應指示燈顯示通斷狀態 |
| 通訊接口 | IONet（支持 Ethernet 和通信冗余） |
| 安裝方式 | DIN 導軌安裝 |
| 電源供應 | 通過連接到 I/O Pack 提供低壓電源（約 28V DC） |
| 模塊尺寸 | 緊湊型結構，適配標準控制柜空間 |
| 工作溫度范圍 | -30°C 至 +65°C |
| 電氣安全與認證 | 滿足 CE、UL、CSA、ATEX 等工業安全標準（視版本而定） |
16 路隔離數字輸入：適用于檢測干接點、繼電器、開關等狀態信號
模塊熱插拔：支持在線更換，無需斷電，減少維護時間
LED 狀態指示：便于現場診斷和通道狀態查看
與 Mark VIe 控制器無縫集成：兼容所有 GE 控制網絡配置
內置信號保護：具備過壓、反接、浪涌等保護措施
支持冗余系統結構：可在雙通道冗余架構中應用
英文資料：
IS220PDIAH1A is a DIN rail mounted digital input module in the Mark VIe control system, used to collect dry contact or active/passive switch signals from industrial sites. This module supports multi-channel digital inputs, with each channel independently isolated and communicating with the main control system (such as controllers or I/O packs) through IONet.
Main technical parameters
Project Description
Module Type: Digital Input Module (PDI: Packaged Digital Input)
Number of input channels: 16 isolated digital input channels
The input voltage range is usually 24V DC (logic "1" is valid)
Channel insulation isolates each channel (between ground and other channels)
Channel status LED indicates that each channel has a corresponding indicator light displaying the on/off status
Communication interface IONet (supporting Ethernet and communication redundancy)
Installation method: DIN rail installation
The power supply is connected to the I/O Pack to provide low-voltage power (approximately 28V DC)
Compact module size structure, suitable for standard control cabinet space
Working temperature range -30 ° C to+65 ° C
Electrical safety and certification meet industrial safety standards such as CE, UL, CSA, ATEX (depending on version)
Product Features
16 isolated digital inputs: suitable for detecting status signals of dry contacts, relays, switches, etc
Module hot swappable: supports online replacement without power outage, reducing maintenance time
LED status indicator: convenient for on-site diagnosis and channel status viewing
Seamless integration with Mark VIe controller: compatible with all GE control network configurations
Built in signal protection: equipped with overvoltage, reverse connection, surge and other protection measures
Support redundant system architecture: can be applied in dual channel redundant architecture
