TRICONEX MP3101 主處理器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TRICONEX MP3101 主處理器模塊 是 TRICONEX 系列產品中的核心模塊之一，廣泛用于工業自動化和過程控制系統，尤其是在需要高可靠性和安全性的應用中。它提供關鍵的控制和計算功能，確保整個控制系統的穩定運行。
以下是 TRICONEX MP3101 主處理器模塊 的詳細技術說明：
產品名稱
TRICONEX MP3101
類型：主處理器模塊
系列：TRICONEX 系列
制造商
TRICONEX – 提供高可靠性、安全性解決方案的全球領先公司，專注于過程控制、安全系統和自動化控制。
產品概述
TRICONEX MP3101 主處理器模塊 是 TRICONEX 系列控制系統中的核心組件，負責執行主要的計算任務、控制算法和邏輯決策。該模塊設計用于工業自動化系統，尤其是那些對安全性要求極高的場合，如石油天然氣、化工、電力和核電等行業。MP3101 提供高性能處理能力，能夠?qū)崟r(shí)處理大量輸入和輸出信號，并執行復雜的控制邏輯。它具有高冗余性，保證系統的高可靠性和容錯能力。
TRICONEX 系統的特點是三重冗余（Triple Modular Redundancy, TMR）架構，這意味著即使一個模塊發生故障，系統仍能繼續安全運行。MP3101 是這一架構的核心，確保實時數據處理、計算和控制，支持系統的穩定性和安全性。
主要技術參數
| 項目 | 參數說明 |
|---|---|
| 模塊類型 | 主處理器模塊 |
| 處理器類型 | 高性能實時處理器 |
| 存儲容量 | 高容量?jī)?nèi)存，支持大量數據存儲 |
| 輸入/輸出通道 | 支持多種輸入/輸出模塊的連接 |
| 冗余類型 | 三重冗余（TMR） |
| 通信接口 | 支持多種工業通信協議，包括Modbus、Ethernet、Profibus等 |
| 工作電壓 | 24V DC |
| 環境溫度范圍 | -20°C 至 +60°C |
| 安裝方式 | DIN導軌安裝 |
| 安全認證 | SIL 3（適用于安全相關應用） |
| 尺寸 | 約 100mm x 150mm x 250mm（根據具體型號） |
英文資料：
The TRICONEX MP3101 main processor module is one of the core modules in the TRICONEX series products, widely used in industrial automation and process control systems, especially in applications that require high reliability and safety. It provides critical control and computing functions to ensure the stable operation of the entire control system.
The following is a detailed technical description of the main processor module of the TRICONEX MP3101:
product name
TRICONEX MP3101
Type: Main Processor Module
Series: Triconex Series
manufacturer
TRICONEX - a global leading company that provides high reliability and safety solutions, focusing on process control, safety systems, and automation control.
product overview
The main processor module of the TRICONEX MP3101 is the core component of the TRICONEX series control system, responsible for executing major computational tasks, control algorithms, and logical decisions. This module is designed for industrial automation systems, especially those with extremely high safety requirements, such as industries such as oil and gas, chemical, power, and nuclear power. MP3101 provides high-performance processing capabilities, capable of real-time processing of large amounts of input and output signals, and executing complex control logic. It has high redundancy, ensuring high reliability and fault tolerance of the system.
The characteristic of the TRICONEX system is the Triple Modular Redundancy (TMR) architecture, which means that even if one module fails, the system can continue to operate safely. MP3101 is the core of this architecture, ensuring real-time data processing, computation, and control, supporting system stability and security.
Main technical parameters
Project parameter description
Module Type: Main Processor Module
Processor type: High performance real-time processor
High capacity memory with storage capacity, supporting large amounts of data storage
Input/output channels support the connection of multiple input/output modules
Redundancy Type Triple Redundancy (TMR)
The communication interface supports multiple industrial communication protocols, including Modbus, Ethernet, Profibus, etc
Working voltage 24V DC
Environmental temperature range -20 ° C to+60 ° C
Installation method: DIN rail installation
Safety certification SIL 3 (applicable to safety related applications)
Size approximately 100mm x 150mm x 250mm (depending on specific model)

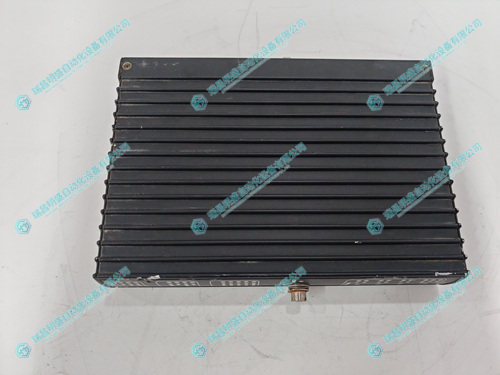

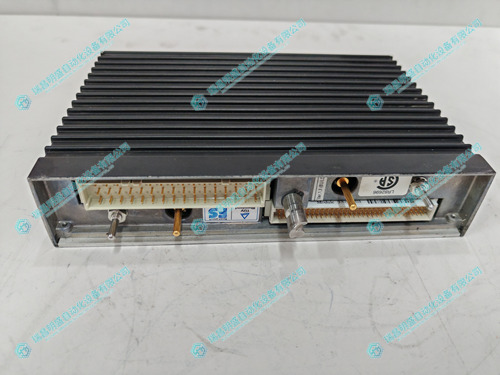

2.產 品 展 示
