TRICONEX CM2201 7400206-100 通信模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
產品名稱：TRICONEX CM2201 通信模塊
部件號：7400206-100
產品類型：通信模塊（Communication Module）或通信接口模塊
所屬系統：Triconex 安全儀表系統（SIS）
廠商：施耐德電氣（Schneider Electric）旗下 Triconex 品牌
一、功能概述
CM2201 模塊是 Tricon 控制系統的核心通信模塊，負責與上位機系統、第三方控制系統、以及冗余控制器之間的通信。常用于系統級數據同步、狀態監控、數據轉發等關鍵操作。
二、主要技術參數
通信接口：串口、以太網（視具體配置而定）
總線類型：用于 Tricon 機架通信插槽
通信協議支持：支持 Modbus、OPC、TCP/IP、UDP、Triconex peer-to-peer 通信等
適用配置：支持 TMR（三模冗余）架構中的通信同步
工作電壓：由主系統供電，無需外接獨立電源
工作溫度：0℃ 至 60℃
存儲溫度：-40℃ 至 85℃
濕度范圍：10%～90% 無冷凝
模塊熱插拔：支持
三、核心特點
高可靠性：專為過程安全系統設計，具備冗余通信機制
實時通信能力：可與多個控制系統和 SCADA 系統進行高速數據交換
系統兼容性強：可與 TRICON v10、v11 系列兼容使用
多種通信方式：可支持多路獨立通信，滿足復雜工業網絡拓?fù)湫枨?/p>
自診斷功能：具備狀態指示與故障自檢功能，便于維護
四、典型應用場景
石油煉化裝置中的 SIS 系統
化工裝置中的緊急停車系統（ESD）
天然氣壓縮站的自動化安全保護系統
火力發電廠的燃燒管理系統與鍋爐保護系統
高風險區域中的聯鎖保護控制
英文資料：
Product Name: Triconex CM2201 Communication Module
Part number: 7400206-100
Product type: Communication Module or Communication Interface Module
System: Triconex Safety Instrumented System (SIS)
Manufacturer: Triconex brand under Schneider Electric
1、 Function Overview
The CM2201 module is the core communication module of the Tricon control system, responsible for communication with the upper computer system, third-party control system, and redundant controllers. Commonly used for critical operations such as system level data synchronization, status monitoring, and data forwarding.
2、 Main technical parameters
Communication interface: serial port, Ethernet (depending on specific configuration)
Bus type: Used for Tricon rack communication slots
Communication protocol support: Supports Modbus, OPC, TCP/IP, UDP, Triconex peer-to-peer communication, etc
Applicable configuration: support communication synchronization in TMR (the third mock examination Redundancy) architecture
Working voltage: Powered by the main system, no external independent power supply is required
Working temperature: 0 ℃ to 60 ℃
Storage temperature: -40 ℃ to 85 ℃
Humidity range: 10% to 90% without condensation
Module hot swappable: Supports
3、 Core Features
High reliability: designed specifically for process safety systems, with redundant communication mechanisms
Real time communication capability: capable of high-speed data exchange with multiple control systems and SCADA systems
Strong system compatibility: compatible with the TRICON v10 and v11 series
Multiple communication methods: Supports multiple independent communication channels to meet complex industrial network topology requirements
Self diagnostic function: equipped with status indication and fault self checking function, easy to maintain
4、 Typical application scenarios
SIS system in petroleum refining equipment
Emergency Shutdown System (ESD) in Chemical Plants
Automated safety protection system for natural gas compression station
Combustion management system and boiler protection system in thermal power plants
Interlocking protection control in high-risk areas

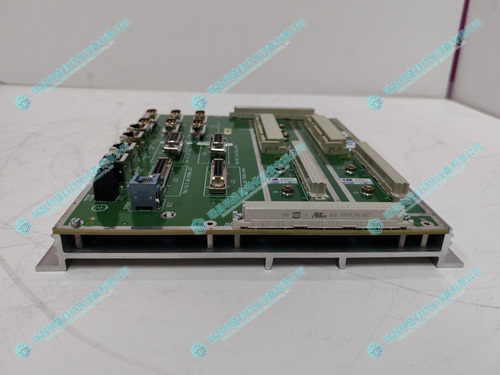

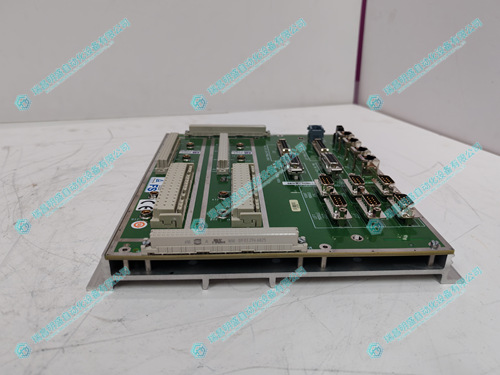

2.產 品 展 示
