TEL Tokyo Electron 3381-000065-13 基板 PCB
類型：功能控制基板 / Interface or Logic PCB
制造商：Tokyo Electron Ltd.（TEL）
一、產品功能概述
該基板為 TEL 半導體設備內部的一種專用電路板，通常用于：
信號中繼與分配：作為主控系統與下位執行單元之間的橋接電路板
數據處理與邏輯控制：可能集成部分控制邏輯或信號處理功能
I/O 接口擴展：提供外部接口，連接傳感器、驅動器、閥控器等
電源管理：進行局部電源轉換、濾波、保護等功能
?? 該 PCB 通常屬于設備中的“中間層”模塊，承擔設備某一特定子系統的功能接口任務。
二、典型應用領域
1. CVD / ALD 系統控制部分
控制氣體比例閥、真空泵啟動信號、熱板加熱器等
收集溫度、氣壓等傳感器信號，并進行前置調理
2. Etch 系統的電源/接口子模塊
實現 RF 功率模塊與工藝主控系統之間的信號橋接
管理射頻匹配網絡、功率開關模塊
3. 晶圓搬運平臺與 Loadlock 系統
控制真空門、升降臺、位移傳感器的輸入輸出通道
支持動作順序控制、狀態回讀和動作反饋
4. 清洗或烘干系統
控制泵、噴頭、化學供給系統等子模塊
實現液位、溫度、壓力的信號檢測與聯動執行
英文資料：
TEL Tokyo Electron 3381-0000065-13 PCB substrate
Type: Function Control Board/Interface or Logic PCB
Manufacturer: Tokyo Electron Ltd. (TEL)
1、 Product Function Overview
This substrate is a specialized circuit board inside TEL semiconductor equipment, typically used for:
Signal Relay and Distribution: As a bridge circuit board between the main control system and the lower level execution unit
Data processing and logic control: may integrate partial control logic or signal processing functions
I/O interface expansion: Provides external interfaces to connect sensors, drivers, valve controllers, etc
Power management: perform local power conversion, filtering, protection and other functions
?? This PCB usually belongs to the "middle layer" module in the device, responsible for the functional interface tasks of a specific subsystem of the device.
2、 Typical application areas
1. CVD/ALD system control part
Control gas proportional valve, vacuum pump start signal, hot plate heater, etc
Collect sensor signals such as temperature and air pressure, and perform pre conditioning
2. The power/interface submodule of the Etch system
Realize signal bridging between RF power module and process control system
Manage RF matching network and power switch module
3. Wafer handling platform and Loadlock system
Control the input and output channels of vacuum doors, lifting platforms, and displacement sensors
Support action sequence control, status feedback, and action feedback
4. Cleaning or drying system
Control sub modules such as pumps, nozzles, and chemical supply systems
Realize signal detection and linkage execution of liquid level, temperature, and pressure

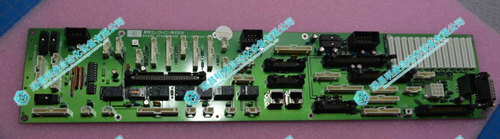

2.產 品 展 示
