TEL Tokyo Electron 381-642277-1限制板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TEL Tokyo Electron 381-642277-1 限制板
類別：限制板 / 限幅板（Limiter Board）
制造商：Tokyo Electron Ltd.（TEL）
一、產品功能概述
該限制板是 TEL 半導體設備系統中的輔助電路模塊，主要功能通常包括：
對輸入電壓、電流或信號幅度進行限制、保護或調節
防止信號過載，保護后級電路或精密部件
提供特定信號范圍內的濾波、鉗位或穩壓控制
在設備異?；蜻吔鐮顟B(tài)下觸發保護機制或報警功能
二、典型應用領域
該模塊通常應用于以下系統中，以保護關鍵部件或穩定信號質量：
1. 氣體控制系統
限制壓力/流量傳感器信號波動，確保閥門控制電路穩定
防止突發信號擾動影響氣體精密供應
2. 電源與驅動控制系統
針對電壓/電流控制信號進行過壓/欠壓保護
限制電機啟動瞬間的沖擊電流或反向電壓
3. I/O 接口與通信系統
限幅外部輸入信號，防止信號異常導致控制系統損壞
提高系統抗干擾能力
4. 安全聯鎖回路
限制或中斷危險狀態下的電源或執行命令
實現聯鎖觸發邏輯中的“限制條件”判斷
英文資料：
TEL Tokyo Electron 381-642277-1 restriction board
Category: Limiter Board
Manufacturer: Tokyo Electron Ltd. (TEL)
1、 Product Function Overview
This restriction board is an auxiliary circuit module in TEL semiconductor equipment system, and its main functions usually include:
Limit, protect, or regulate input voltage, current, or signal amplitude
Prevent signal overload, protect downstream circuits or precision components
Provide filtering, clamping, or voltage stabilization control within a specific signal range
Trigger protection mechanisms or alarm functions in case of device abnormalities or boundary states
2、 Typical application areas
This module is typically applied in the following systems to protect critical components or stabilize signal quality:
1. Gas control system
Limit pressure/flow sensor signal fluctuations to ensure valve control circuit stability
Prevent sudden signal disturbances from affecting precise gas supply
2. Power supply and drive control system
Overvoltage/undervoltage protection for voltage/current control signals
Limit the impulse current or reverse voltage at the moment of motor start-up
3. I/O interface and communication system
Limiting external input signals to prevent signal abnormalities from causing damage to the control system
Improve the anti-interference ability of the system
4. Safety interlock circuit
Restricting or interrupting power supply or executing commands in hazardous conditions
Realize the judgment of "limiting conditions" in the interlocking triggering logic

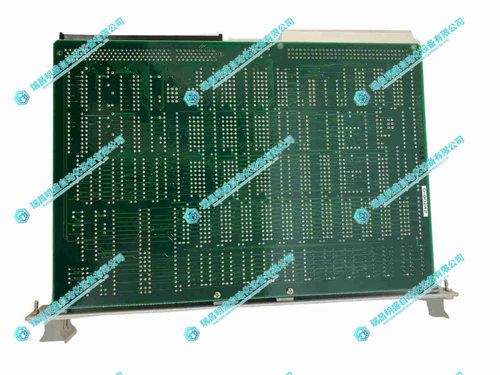

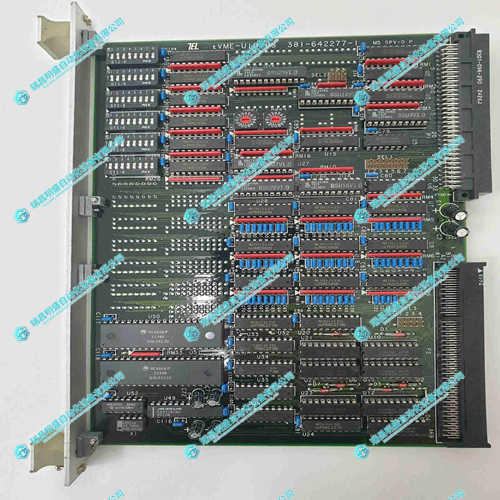

2.產 品 展 示
