TEL Tokyo Electron 2L81-050135-12連接板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
一、基本信息
產品型號：2L81-050135-12
產品名稱：連接板 / 接口板（Connection Board / Interface PCB）
制造商：Tokyo Electron Limited（TEL，日本東京電子）
模塊類型：信號/電源中繼連接板
版本編號：-12（表示此為第12版或特定修訂版本）
二、主要功能
該連接板用于在設備內部不同模塊或子系統之間進行信號、電源或通信接口的連接與中繼，是典型的“橋接類”PCB。
| 功能類型 | 描述 |
|---|---|
| 信號連接 | 提供多個標準或定制接口，用于數據/控制信號在模塊間傳輸 |
| 電源分配 | 分配來自主電源或控制電源的多個輸出通路，供各子模塊使用 |
| 接口中繼 | 實現外部線纜與內部主板/模塊之間的接線過渡和信號整理 |
| 布局適配 | 將不同規格的接插件、排線連接到標準插槽或母板 |
| 電氣隔離/防護 | 有部分通道可能集成簡單濾波、電壓保護元件，用于抗干擾與限流 |
三、應用場景
此類連接板在 TEL 多種設備中被廣泛使用，具體可能應用于以下系統：
ACT 系列涂膠顯影設備
用于控制模塊與傳感器、執行元件之間的電纜分線與整合
支持傳感器、IO 板、電源板與主控制板之間的快速連接
Tactras / Trias 蝕刻與沉積設備
用作氣體通路、電磁閥、真空系統等子模塊的信號中轉與電源橋接
EFEM / Load Port 系統
用于搬運控制器與門禁系統、機械臂控制模塊之間的接線整合
英文資料：
1、 Basic Information
Product model: 2L81-050135-12
Product Name: Connection Board/Interface PCB
Manufacturer: Tokyo Electron Limited (TEL, Tokyo Electronics, Japan)
Module type: Signal/Power Relay Connection Board
Version number: -12 (indicating this is the 12th edition or a specific revised version)
2、 Main functions
This connection board is used to connect and relay signal, power, or communication interfaces between different modules or subsystems within the device, and is a typical "bridge type" PCB.
Function type description
Signal connections provide multiple standard or customized interfaces for transmitting data/control signals between modules
Power distribution distributes multiple output paths from the main power supply or control power supply for use by each submodule
Interface relay enables wiring transition and signal organization between external cables and internal motherboards/modules
Layout adaptation connects connectors and cables of different specifications to standard slots or motherboards
Some channels of electrical isolation/protection may integrate simple filtering and voltage protection components for anti-interference and current limiting purposes
3、 Application scenarios
This type of connection board is widely used in various TEL devices and may be specifically applied to the following systems:
ACT series coating and developing equipment
Used for cable routing and integration between control modules, sensors, and actuators
Support quick connection between sensors, IO boards, power boards, and main control boards
Tactras/Trias etching and deposition equipment
Used as a signal relay and power bridge for submodules such as gas pathways, solenoid valves, vacuum systems, etc
EFEM/Load Port System
Used for wiring integration between handling controllers, access control systems, and robotic arm control modules

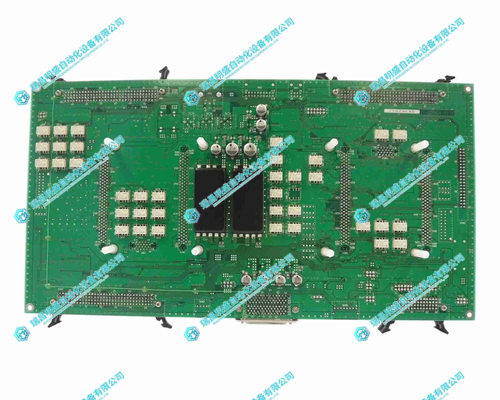

2.產 品 展 示
