TEL Tokyo Electron CX81-050016-12印刷電路板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
一、基本信息
產品型號：CX81-050016-12
產品名稱：印刷電路板（Printed Circuit Board，PCB）
制造商：Tokyo Electron Limited（TEL，日本東京電子）
板卡類別：接口/控制用途電路板
版本號：-12（表示該電路板的第12版硬件或設計修訂）
二、主要功能
該 PCB 主要用于設備內部信號傳遞與接口連接，承擔以下功能：
| 功能類別 | 描述 |
|---|---|
| 信號傳輸 | 連接設備內部多個模塊，實現信號交換和控制指令傳遞 |
| 接口橋接 | 作為不同子系統的接口橋梁，協調各部分?jǐn)?shù)據流 |
| 輔助控制 | 支持低速控制信號的邏輯處理和分配 |
| 電源分配 | 可能具備電源分配或?yàn)V波功能，保證信號穩定性 |
三、應用領域
該型號電路板通常安裝于以下TEL設備中：
光刻輔助設備（如ACT系列）
蝕刻及薄膜沉積設備（如Tactras、Trias系列）
晶圓搬運和自動化系統
用于協調控制模塊、傳感器、執行器和通信接口之間的信號流。
英文資料：
1、 Basic Information
Product model: CX81-050016-12
Product Name: Printed Circuit Board (PCB)
Manufacturer: Tokyo Electron Limited (TEL, Tokyo Electronics, Japan)
Board type: Interface/Control purpose circuit board
Version number: -12 (indicating the 12th hardware or design revision of the circuit board)
2、 Main functions
This PCB is mainly used for internal signal transmission and interface connection of equipment, undertaking the following functions:
Functional category description
Signal transmission connects multiple modules within the device to achieve signal exchange and control instruction transmission
Interface bridging serves as an interface bridge for different subsystems, coordinating the data flow of various parts
Auxiliary control supports logical processing and allocation of low-speed control signals
Power distribution may have power distribution or filtering functions to ensure signal stability
3、 Application Fields
This type of circuit board is usually installed in the following TEL devices:
Lithography auxiliary equipment (such as ACT series)
Etching and thin film deposition equipment (such as Tactras, Trias series)
Wafer handling and automation system
Used to coordinate the signal flow between control modules, sensors, actuators, and communication interfaces.

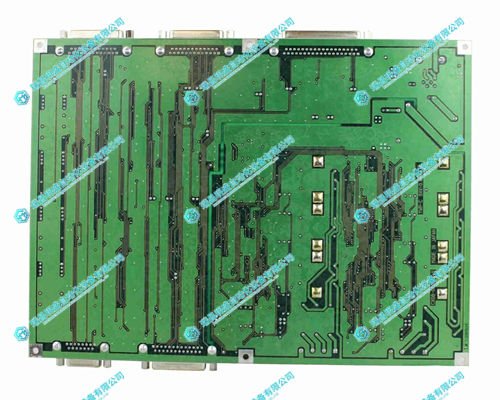

2.產 品 展 示
