TEL Tokyo Electron E249-000003-13屏幕監視器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TEL Tokyo Electron E249-000003-13 屏幕監視器（Monitor Display Unit） 是專用于TEL半導體設備中的工業級顯示模塊，主要用于人機界面（HMI）操作、系統狀態監視、報警顯示和工藝數據可視化。它通常作為操作臺或設備面板的一部分，為工程師或操作員提供交互與控制平臺。
一、基本信息
產品名稱：屏幕監視器 / 顯示器單元
產品型號：E249-000003-13
制造商：Tokyo Electron Ltd.（TEL）
產品類型：工業顯示器（Industrial Monitor）
適用設備：用于TEL的刻蝕機、CVD機、清洗機、Track系統等
二、主要功能
工藝監控顯示
實時顯示設備工藝參數（溫度、壓力、流量等）；
展示腔體狀態、進程進度、設備警報等關鍵信息。
操作界面支持
用于顯示人機界面（HMI），操作員可通過觸摸或按鈕操作控制設備；
支持菜單切換、日志查詢、配方設定等功能。
報警與提示
顯示當前系統報警、故障信息、警示代碼；
指導用戶快速排查并恢復生產。
通信與遠程管理接口
支持與TEL主控系統或PLC通信，實時同步數據；
可兼容TEL專用軟件界面或嵌入式控制平臺。
英文資料：
TEL Tokyo Electron E249-000003-13 Monitor Display Unit is an industrial grade display module specifically designed for TEL semiconductor equipment. It is mainly used for human-machine interface (HMI) operation, system status monitoring, alarm display, and process data visualization. It is usually used as a part of the console or equipment panel, providing an interaction and control platform for engineers or operators.
1、 Basic Information
Product Name: Screen Monitor/Display Unit
Product model: E249-000003-13
Manufacturer: Tokyo Electron Ltd. (TEL)
Product type: Industrial Monitor
Applicable equipment: Etching machines, CVD machines, cleaning machines, Track systems, etc. for TEL
2、 Main functions
Process monitoring display
Real time display of equipment process parameters (temperature, pressure, flow rate, etc.);
Display key information such as cavity status, process progress, equipment alarms, etc.
Operation interface support
Used to display human-machine interface (HMI), operators can control equipment through touch or button operation;
Support menu switching, log query, recipe setting and other functions.
Alarm and Reminder
Display current system alarm, fault information, and warning codes;
Guide users to quickly troubleshoot and restore production.
Communication and remote management interface
Support communication with TEL main control system or PLC, real-time synchronization of data;
Compatible with TEL dedicated software interface or embedded control platform.

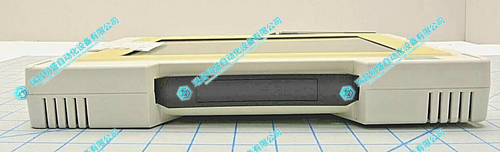

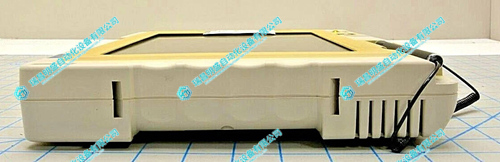

2.產 品 展 示
