TEL Tokyo Electron 1B80-002391-11控制主板卡件 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TEL Tokyo Electron 1B80-002391-11 控制主板卡件（Control Main Board） 是一塊核心控制類印刷電路板，主要用于TEL半導體制造設備中承擔系統級的邏輯控制、信號調度、子模塊協調與工藝流程管理等任務。它是設備內部多個子系統之間的中樞“主控模塊”，在系統的整體運行中處于關鍵地位。
一、基本信息
產品名稱：控制主板卡件 / 主控板
產品型號：1B80-002391-11
制造商：Tokyo Electron Ltd.（TEL）
功能分類：系統級邏輯控制、子系統調度控制
典型位置：安裝于主控電氣柜、機架內部或控制接口單元中
二、主要功能
設備主控制邏輯執行
管理設備開機初始化、工藝流程邏輯、關機次序等；
實現對各子模塊（氣路、閥控、電源、搬運等）的協調控制。
接口管理
集成多個通信接口（I/O 總線、串口、CAN、Ethernet等），用于連接 I/O 板卡、傳感器、驅動單元。
數據采集與處理
處理來自傳感器板、輸入卡件等的反饋數據，實時響應控制策略。
與上位系統通信
與主機或工程站通信，支持配方下載、參數調整、日志上傳等功能。
三、應用設備類型（部分）
該主控板卡可部署于以下TEL設備類型中：
Etcher（干法刻蝕設備）
控制真空泵、等離子源、氣體混合模塊等核心功能。
CVD/ALD設備
管理溫控區、化學源供給、反應腔操作等子系統。
Coater/Developer（光刻顯影設備）
協調晶圓搬送、旋轉、顯影、加熱等功能單元。
Transfer Robot系統
統一控制機械臂運動軌跡、限位反饋與手爪動作等。
英文資料：
The TEL Tokyo Electron 1B80-002391-11 Control Main Board is a core control printed circuit board mainly used in TEL semiconductor manufacturing equipment to undertake system level logic control, signal scheduling, submodule coordination, and process flow management tasks. It is the central "control module" between multiple subsystems within the device, playing a critical role in the overall operation of the system.
1、 Basic Information
Product Name: Control Motherboard Card/Main Control Board
Product model: 1B80-002391-11
Manufacturer: Tokyo Electron Ltd. (TEL)
Functional classification: System level logic control, subsystem scheduling control
Typical location: Installed inside the main control electrical cabinet, rack, or control interface unit
2、 Main functions
Execution of equipment main control logic
Manage device startup initialization, process logic, shutdown sequence, etc;
Realize coordinated control of various sub modules (gas circuit, valve control, power supply, handling, etc.).
Interfaces
Integrate multiple communication interfaces (I/O bus, serial port, CAN, Ethernet, etc.) for connecting I/O boards, sensors, and driver units.
data acquisition and processing
Process feedback data from sensor boards, input cards, etc., and respond in real-time to control strategies.
Communicate with the upper system
Communicate with the host or engineering station, support formula download, parameter adjustment, log upload and other functions.
3、 Application device type (partial)
This controller card can be deployed in the following TEL device types:
Etcher (dry etching equipment)
Control core functions such as vacuum pump, plasma source, gas mixing module, etc.
CVD/ALD equipment
Manage subsystems such as temperature control zone, chemical source supply, and reaction chamber operation.
Coater/Developer (Photolithography and Development Equipment)
Coordinate wafer handling, rotation, development, heating and other functional units.
Transfer Robot System
Unified control of robotic arm motion trajectory, limit feedback, and claw movements.

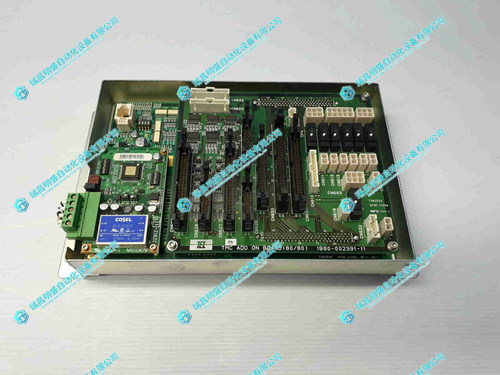

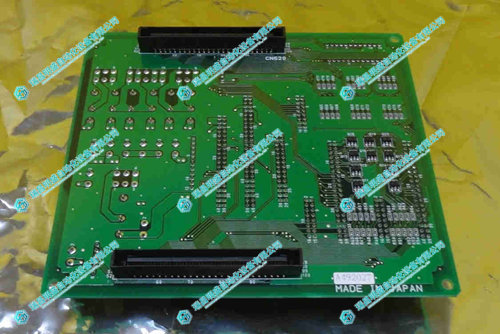

2.產 品 展 示
