TEL Tokyo Electron 2L81-050094-V2模擬輸入電子模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TEL Tokyo Electron 2L81-050094-V2 模擬輸入電子模塊（Analog Input Module） 是TEL設備中用于采集和處理模擬量信號的關鍵電子模塊，廣泛應用于各類半導體制造設備的傳感器數據采集、工藝監控與反饋控制系統中，是實現高精度工藝控制的重要硬件組成部分。
一、基本信息
產品名稱：模擬輸入電子模塊
產品型號：2L81-050094-V2
制造商：Tokyo Electron Ltd.（TEL）
功能類別：模擬信號采集模塊（AI Module）
應用位置：設備電控系統或傳感器集成模塊中
二、主要功能
模擬信號采集
支持多通道模擬輸入，如電壓（0–10V）、電流（4–20mA）等。
接收來自溫度傳感器、壓力傳感器、流量計、位置反饋器等設備的連續信號。
信號轉換與調理
將模擬信號轉換為數字信號（A/D轉換），供控制系統處理；
內置濾波、隔離和放大功能，提高信號精度與穩定性。
與控制系統通信
將采集的工藝參數傳送至主控PLC或嵌入式控制器；
實現實時工藝數據反饋與閉環控制。
異常檢測與報警聯動
提供信號異常檢測能力，如斷線、超限、漂移等；
支持設備報警、自動保護與聯鎖功能。
英文資料：
The TEL Tokyo Electron 2L81-050094-V2 Analog Input Module is a key electronic module used in TEL equipment for collecting and processing analog signals. It is widely used in sensor data acquisition, process monitoring, and feedback control systems of various semiconductor manufacturing equipment, and is an important hardware component for achieving high-precision process control.
1、 Basic Information
Product Name: Analog Input Electronic Module
Product model: 2L81-050094-V2
Manufacturer: Tokyo Electron Ltd. (TEL)
Function category: Analog signal acquisition module (AI Module)
Application location: In equipment electrical control systems or sensor integration modules
2、 Main functions
Analog signal acquisition
Supports multi-channel analog inputs, such as voltage (0-10V), current (4-20mA), etc.
Receive continuous signals from temperature sensors, pressure sensors, flow meters, position feedback devices, and other equipment.
Signal conversion and conditioning
Convert analog signals into digital signals (A/D conversion) for processing by the control system;
Built in filtering, isolation, and amplification functions improve signal accuracy and stability.
Communication with control system
Transfer the collected process parameters to the main control PLC or embedded controller;
Realize real-time process data feedback and closed-loop control.
Abnormal detection and alarm linkage
Provide signal anomaly detection capabilities, such as wire breakage, over limit, drift, etc;
Support device alarm, automatic protection, and interlocking functions.

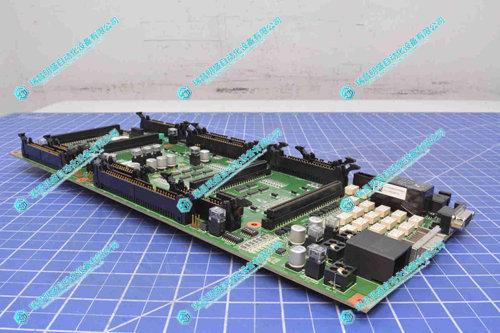

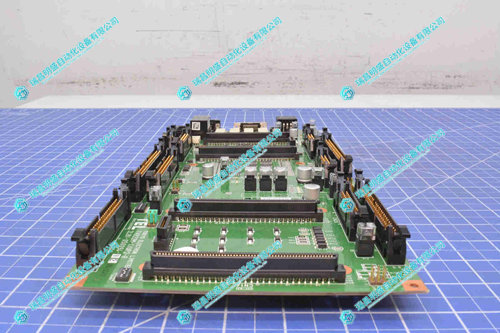

2.產 品 展 示
