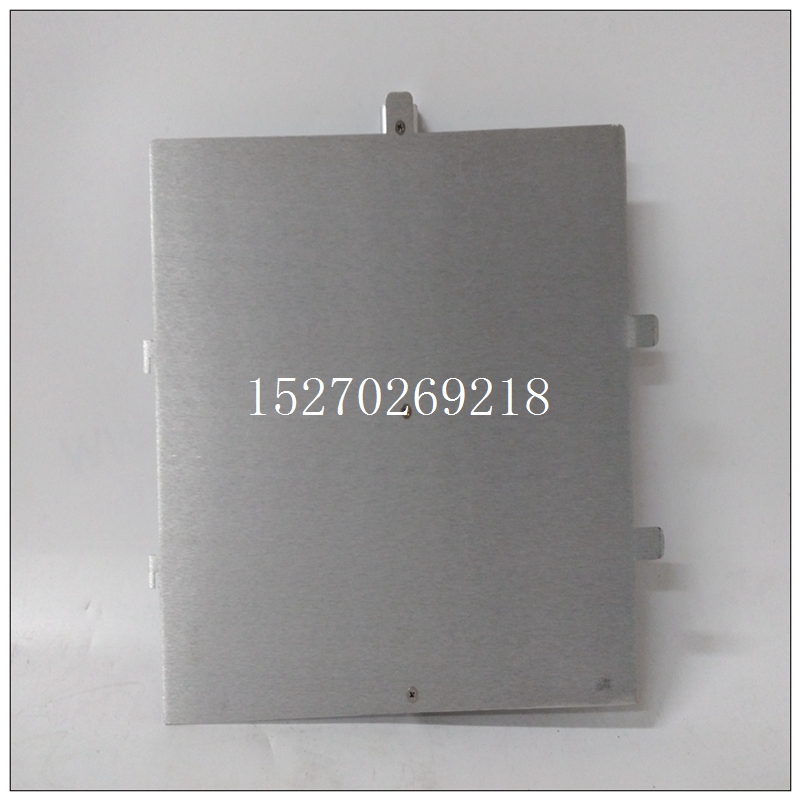

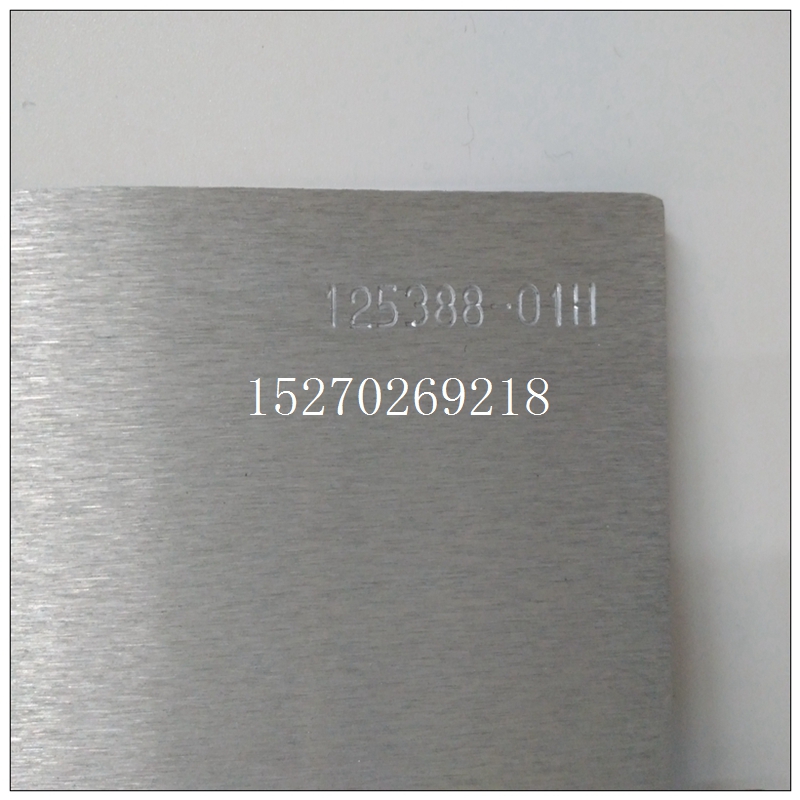

BENTLY 125388-01H速度監測器
嘗試通過以下方式將程序員連接到RX7i以太網將不成功。正常連接重試對話框不會顯示。重新啟動運行程序員的計算機將解決該行為。在一個系統中，如果硬件配置是從一個目標存儲的，則不要使用多個目標目標和邏輯從另一個目標存儲，通過閃存通電不起作用。觀察到的行為是flash，機器版軟件報告硬件配置和邏輯“不平等”。下載具有非常大的硬件配置或如果使用大量用戶內存，則可能會遇到將配置寫入閃存時出現“序列存儲失敗”錯誤。要解決此錯誤，可以執行以下任一操作或兩個操作：有幫助：
BENTLY 125388-01H速度監測器1、在執行寫入之前，執行明確的清除閃存。
2、增加機器版軟件使用的操作超時在執行寫入之前。這是通過擴展目標檢查器窗口中的其他配置控制器，并調整請求超時。超時可能會需要增加到60000毫秒，具體取決于使用的內存量和閃存的狀況在一些斷電事件后，霍納熱電偶模塊（HE697THM160）可能無法成功通電。失敗后，%AI數據將無法正確更新，并將繼續返回零值。此事件沒有模塊故障指示燈。用戶應該再次通電以恢復正常功能。擴展機架中模塊上的故障觸點當擴展機架通電時，插槽故障觸點將過早地表明擴展機架中的模塊沒有在完成通電之前出現故障。使用輸入/輸出點故障觸點驗證輸入/輸出的有效性。如果90-70系列遠程輸入/輸出站和其中一個存在多個故障，則遠程輸入/輸出站上的故障觸點故障觸點使用遠程輸入/輸出站的模塊參考將錯誤地指示遠程輸入/輸出站。
BIT\u SEQ function block DIR參數BIT\u SEQ function block應要求用戶流動布爾值邏輯轉換為DIR參數，但目前沒有。如果沒有DIR參數如果存在，則默認情況下，BIT_SEQ將遞增。
WinLoader可能會停止在運行Windows 2000并使用某些版本的Symantec防病毒保護，如果在advanced中使用，WinLoader將失敗模式恢復需要循環計算機電源。
Infrequently, an attempt to connect a programmer to an RX7i via
Ethernet will be unsuccessful. The normal connection retry dialog will not
be displayed. Rebooting the computer that is running the programmer
will resolve the behavior.
Don’t use multiple targets In a system in which the hardware configuration is stored from one
target and logic is stored from a different target, powering-up from flash
will not work. The observed behavior is that, following a power up from
flash, Machine Edition software reports hardware configuration and logic
"not equal".
Sequence store failure When downloading projects with very large hardware configuration or
which use large amounts of user memory, it is possible to encounter a
“Sequence Store Failure” error when writing the configuration to flash.
To work around this error, either or both of the following actions may be
helpful:
1. Perform an explicit clear of flash prior to performing the write.
2. Increase the operation timeout used by Machine Edition software
prior to performing the write. This is done by expanding the
Additional Configuration in the Inspector window for the target
controller, and adjusting the Request Timeout. The timeout may
need to be increased to as much as 60000 msec, depending on
the amount of memory used and the condition of the flash memoryfter some power loss events, the Horner Thermocouple module
(HE697THM160) may fail to power up successfully. After failure, the %AI
data will not be updated correctly and will continue to return zero values.
There are no module fault indicators for this event. The user should
power cycle again to restore normal function.
Fault contacts on modules in expansion rack When an expansion rack powers up, the slot fault contacts will
prematurely indicate that the modules in the expansion rack are not
faulted before they complete their power up. Use I/O point fault contacts
to verify validity of the I/O.
Fault contacts on Remote I/O Station If multiple faults exist in a Series 90-70 Remote I/O Station and one of
them is corrected, a FAULT contact that uses the Remote I/O Station’s
module reference will incorrectly indicate that no faults exist at the
Remote I/O Station.
BIT_SEQ function block DIR parameter The BIT_SEQ Function Block should require the user to flow BOOLEAN
logic into the DIR parameter, but currently does not. If no DIR parameter
is present, the BIT_SEQ will increment by default.
WinLoader may stop operating On computers running Windows 2000 and using some versions of
Symantec Antivirus protection, WinLoader will fail if used in advanced
mode. Recovery requires cycling the computer's power.
